10G SFP+ Transceiver Module

Visint® SFP+ optical modules comply with SFP + MSA related conventions. Support hot plugging, and adopt industry standard LC interfaces.The core optical transceivers all use high-reliability lasers and PIN or APD receivers. A low-power solution with a single power supply of 3.3V is used to control energy consumption. According to the SFP MSA specification, it provides monitoring/alarm interfaces such as data loss (LOS), transmission failure (Tx_Fault), and laser shutdown (Tx_Dis). Real-time monitoring of diagnostic characteristics in accordance with SFF-8472 "Optical Transceiver Diagnostic Monitoring Interface": Transmitted optical power, received optical power, laser bias current, temperature, power supply voltage. Compliant with IEC 60825-1 Class 1/CDRH Class 1 Laser Eye Safe and RoHS directive. Our SFP+ transceiver modules at rate 6.25Gbps, 8.5Gbps and 10Gbps are suitable for switches, routers, firewalls and other equipment. Widely used in telecommunications, data centers, security and military industries.

8.5G SFP+ Transceiver Module

Visint® SFP+ optical modules comply with SFP + MSA related conventions. Support hot plugging, and adopt industry standard LC interfaces.The core optical transceivers all use high-reliability lasers and PIN or APD receivers. A low-power solution with a single power supply of 3.3V is used to control energy consumption. According to the SFP MSA specification, it provides monitoring/alarm interfaces such as data loss (LOS), transmission failure (Tx_Fault), and laser shutdown (Tx_Dis). Real-time monitoring of diagnostic characteristics in accordance with SFF-8472 "Optical Transceiver Diagnostic Monitoring Interface": Transmitted optical power, received optical power, laser bias current, temperature, power supply voltage. Compliant with IEC 60825-1 Class 1/CDRH Class 1 Laser Eye Safe and RoHS directive. Our SFP+ transceiver modules at rate 6.25Gbps, 8.5Gbps and 10Gbps are suitable for switches, routers, firewalls and other equipment. Widely used in telecommunications, data centers, security and military industries.

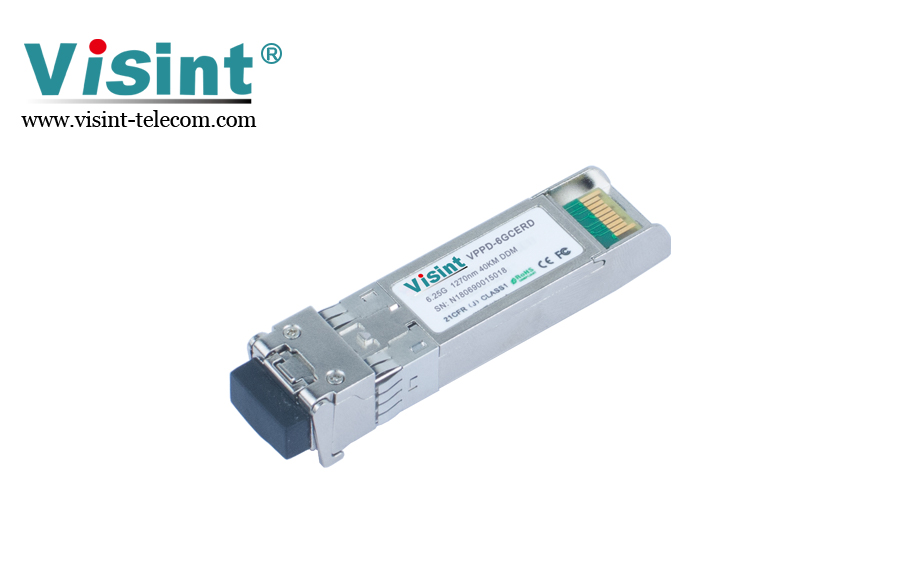

6.25G SFP+ Transceiver Module

Visint® SFP+ optical modules comply with SFP + MSA related conventions. Support hot plugging, and adopt industry standard LC interfaces.The core optical transceivers all use high-reliability lasers and PIN or APD receivers. A low-power solution with a single power supply of 3.3V is used to control energy consumption. According to the SFP MSA specification, it provides monitoring/alarm interfaces such as data loss (LOS), transmission failure (Tx_Fault), and laser shutdown (Tx_Dis). Real-time monitoring of diagnostic characteristics in accordance with SFF-8472 "Optical Transceiver Diagnostic Monitoring Interface": Transmitted optical power, received optical power, laser bias current, temperature, power supply voltage. Compliant with IEC 60825-1 Class 1/CDRH Class 1 Laser Eye Safe and RoHS directive. Our SFP+ transceiver modules at rate 6.25Gbps, 8.5Gbps and 10Gbps are suitable for switches, routers, firewalls and other equipment. Widely used in telecommunications, data centers, security and military industries.

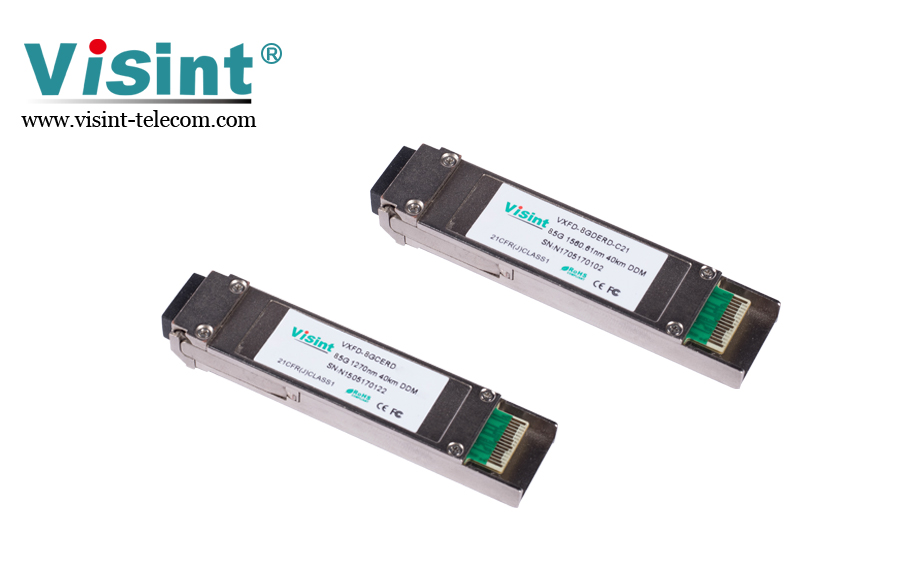

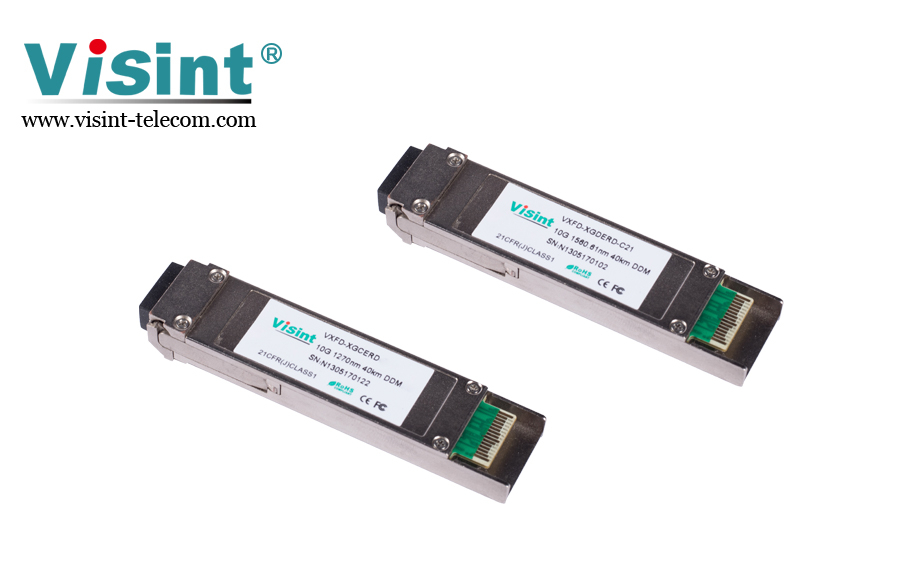

10G XFP Transceiver Module

Visint® XFP optical module fully complies with the XFP MSA standard of version 4.5 and the power consumption is less than 3.5W. The working rate of XFP module is from 8.5Gbps to 11.3Gbps, which is suitable for Sonet/SDH, 10G Ethernet, Fibre Channel and G.707 OTN standards. XFP 10G transceiver module adopts high-reliability laser and PIN or APD receiving components, laser driver and supporting circuit at the transmitting end. An avalanche photo-diode (APD) or PIN ROSA and supporting circuits are used at the receiving end. A clock data recovery circuit (CDR) is also provided. XFP 10G has digital diagnostics (also known as digital optical inspection, DDM), which monitors optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage in real time. Compliant with IEC 60825-1 Class 1/CDRH Class 1 Laser Eye Safe and RoHS directive. IT is suitable for switches, routers, firewalls and other equipment. Widely used in telecommunications, data centers, security and military industries.

8.5G XFP Transceiver Module

Visint® XFP optical module fully complies with the XFP MSA standard of version 4.5 and the power consumption is less than 3.5W. The working rate of XFP module is from 8.5Gbps to 11.3Gbps, which is suitable for Sonet/SDH, 10G Ethernet, Fibre Channel and G.707 OTN standards. XFP 10G transceiver module adopts high-reliability laser and PIN or APD receiving components, laser driver and supporting circuit at the transmitting end. An avalanche photo-diode (APD) or PIN ROSA and supporting circuits are used at the receiving end. A clock data recovery circuit (CDR) is also provided. XFP 10G has digital diagnostics (also known as digital optical inspection, DDM), which monitors optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage in real time. Compliant with IEC 60825-1 Class 1/CDRH Class 1 Laser Eye Safe and RoHS directive. IT is suitable for switches, routers, firewalls and other equipment. Widely used in telecommunications, data centers, security and military industries.

25G SFP28 Transceiver Module

Visint® SFP28 transceiver module complies with the SFP28 MSA SFF-8431, SFF-8432, IEEE802.3cc 25GBASE, and CPRI/eCPRI standards. The transmission rate is up to 25.78Gbps. It has the advantages of small size, low power consumption, and wide temperature range. It can transmits a distance of up to 40KM with FEC . It is designed for data center Ethernet, fiber storage, and 5G network CPRI/eCPRI applications.

40G QSFP+ Transceiver Module

Visint® 40G QSFP + transceiver module complies with QSFP + MSA SFF-8436 and IEEE 802.3ba standards, and the total transmission rate can reach 41.25Gb/s. With low power consumption, small size, high rate and other characteristics. The multimode transceiver module adopts four 10.3125Gbps channel VCSEL laser array optical transmitters and four PIN photo-detector array receivers. The transmission distance of OM3 multimode fiber can reach 300M and the transmission distance of OM4 multimode fiber can reach 400M. The single-mode optical module converts four 10.3125Gbps channels into four CWDM channels (DFB laser array) optical signals, and multiplexes them to 41.25Gbps, which are output from the transmitter through SMF. The receiver receives 41.25Gbps optical signal input and demultiplexes it into 4 CWDM 10.3125Gbps channels. Received by PIN light detector, the transmission distance can reach 40KM, and it is widely used in various Ethernet devices such as switches, routers, data centers.

100G CFP Transceiver Module

Visint® CFP transceiver module complies with the CFP MSA and IEEE802.3ba standards, and the total transmission rate can reach 111.8Gbps. It has low power consumption and higher rate features, and is compatible with Ethernet and OTN OTU4 applications. The multimode optical module uses ten 11.18Gbps channel VCSEL laser array optical transmitters and 10 PIN photo-detector array receivers. The transmission distance of OM3 multimode fiber can reach 100M and the transmission distance of OM4 multimode fiber can reach 400M. The single-mode optical module uses 4 LAN-WDM channels (EML laser array) optical signals, and is multiplexed to 111.8Gbps, which is output from the transmitter through SMF. The receiver receives 111.8Gbps optical signal input and demultiplexes it into 4 LAN-CWDM 28Gbps channels. It is received by the PIN photo-detector with a transmission distance of up to 10KM. It is widely used in various Ethernet devices such as switches, routers, and data centers.

100G CFP2 Transceiver Module

Visint® CFP2 transceiver module complies with the CFP2 MSA, ITU-T G.959.1 2012 and IEEE802.3ba standards, and the total transmission rate can reach 112Gbps. It has low power consumption and high rate features, and is compatible with Ethernet and OTU4 applications. The multimode optical module uses ten 11.18Gbps channel VCSEL laser array optical transmitters and 10 PIN photo-detector array receivers. The transmission distance of OM3 multimode fiber can reach 300M, and the transmission distance of OM4 multimode fiber can reach 400M. The single-mode optical module uses 4 LAN-WDM channels (EML laser array) optical signals, and will be multiplexed to 112Gbps and output from the transmitter through SMF. The receiver receives 112Gbps optical signal input and demultiplexes it into 4 LAN-CWDM 28Gbps channels. Received by PIN light detector, the transmission distance can reach 40KM, and it is widely used in various Ethernet devices such as switches, routers, data centers.

100G QSFP28 Transceiver Module

Visint® QSFP28 transceiver module complies with SFF-8636, MSA and IEEE802.3bm standards, and the total transmission rate can reach 103.1Gbps. Features low power consumption, small size and high speed. Including AOC, SR4, LR4, ER4, CWDM4, PSM4 and other series, adopting LC or MPO optical port. Mainly used for 100G data center internal network, data center interconnection and metropolitan area network and 5G wireless network applications.
