6.25G SFP+ Transceiver Module

Product Overview

Visint® SFP+ optical modules comply with SFP + MSA related conventions. Support hot plugging, and adopt industry standard LC interfaces.The core optical transceivers all use high-reliability lasers and PIN or APD receivers. A low-power solution with a single power supply of 3.3V is used to control energy consumption. According to the SFP MSA specification, it provides monitoring/alarm interfaces such as data loss (LOS), transmission failure (Tx_Fault), and laser shutdown (Tx_Dis). Real-time monitoring of diagnostic characteristics in accordance with SFF-8472 "Optical Transceiver Diagnostic Monitoring Interface": Transmitted optical power, received optical power, laser bias current, temperature, power supply voltage. Compliant with IEC 60825-1 Class 1/CDRH Class 1 Laser Eye Safe and RoHS directive. Our SFP+ transceiver modules at rate 6.25Gbps, 8.5Gbps and 10Gbps are suitable for switches, routers, firewalls and other equipment. Widely used in telecommunications, data centers, security and military industries.

Inquiry Now

Visint® SFP+ optical modules comply with SFP + MSA related conventions. Support hot plugging, and adopt industry standard LC interfaces.The core optical transceivers all use high-reliability lasers and PIN or APD receivers. A low-power solution with a single power supply of 3.3V is used to control energy consumption. According to the SFP MSA specification, it provides monitoring/alarm interfaces such as data loss (LOS), transmission failure (Tx_Fault), and laser shutdown (Tx_Dis). Real-time monitoring of diagnostic characteristics in accordance with SFF-8472 "Optical Transceiver Diagnostic Monitoring Interface": Transmitted optical power, received optical power, laser bias current, temperature, power supply voltage. Compliant with IEC 60825-1 Class 1/CDRH Class 1 Laser Eye Safe and RoHS directive. Our SFP+ transceiver modules at rate 6.25Gbps, 8.5Gbps and 10Gbps are suitable for switches, routers, firewalls and other equipment. Widely used in telecommunications, data centers, security and military industries.

Features

  • 3.3V power supply

  • Transmission distance up to 80KM

  • Transmission rate up to 11.3Gbps

  • Support digital diagnostic monitoring (DDM)

  • Single fiber, dual fiber, CWDM, DWDM multiple specifications are available

  • Compliant with SFP + MSA SFF-8431 / 8432

  • Compliant with RoHS 2002/95 / EC standards

  • Working temperature range: 0 ℃ ~ 70 ℃


Application

  • Security transmission system

  • Ethernet transmission system

  • Data center transmission system

  • Fibre Channel transmission system

  • Routing / server interface system

  • Switch-to-switch interface transmission system

  • Other fiber optic transmission systems



Model

Form Type

Wavelength

Rate

Cable Type

Interface

TX Power

Receiver Sensitivity

Distance

DDM

6.25G SFP+

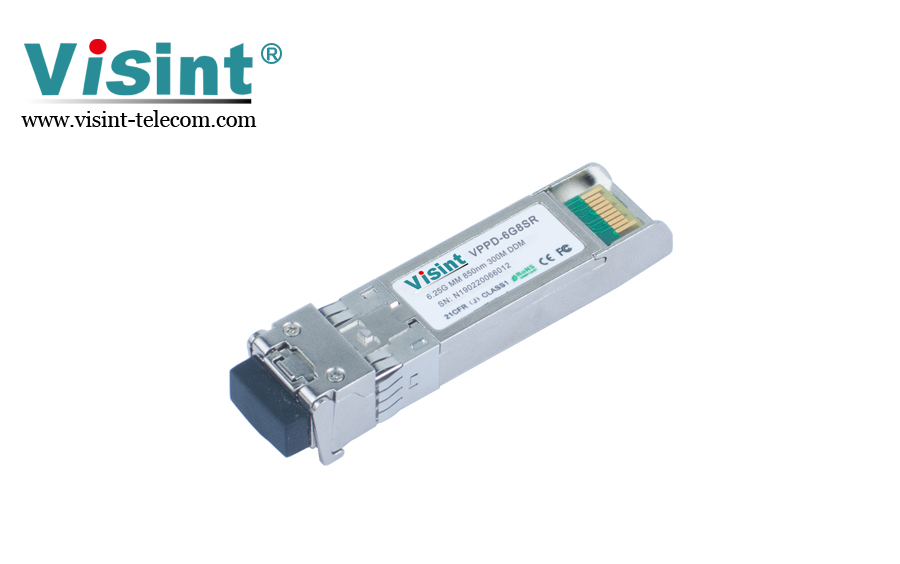

VPP(D)-6G8SR

SFP+

850nm

6.25Gbps

MMF

LC

(-5~-1)dBm

≤-10dBm

300m

Yes/No

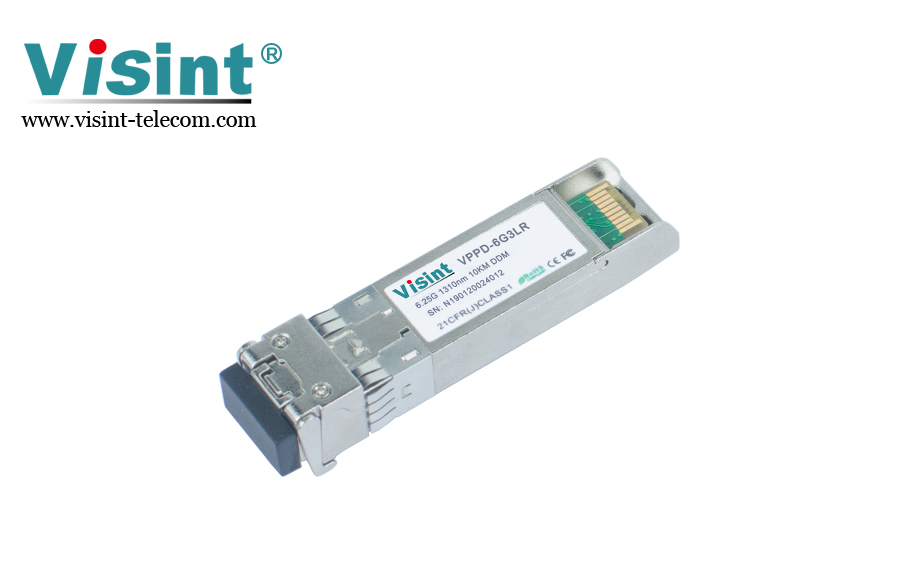

VPP(D)-6G3LR

SFP+

1310nm

6.25Gbps

SMF

LC

(-8~-1)dBm

≤-14dBm

10km

Yes/No

VPP(D)-6G5ERD

SFP+

1550nm

6.25Gbps

SMF

LC

(-1~3)dBm

≤-16dBm

40km

Yes/No

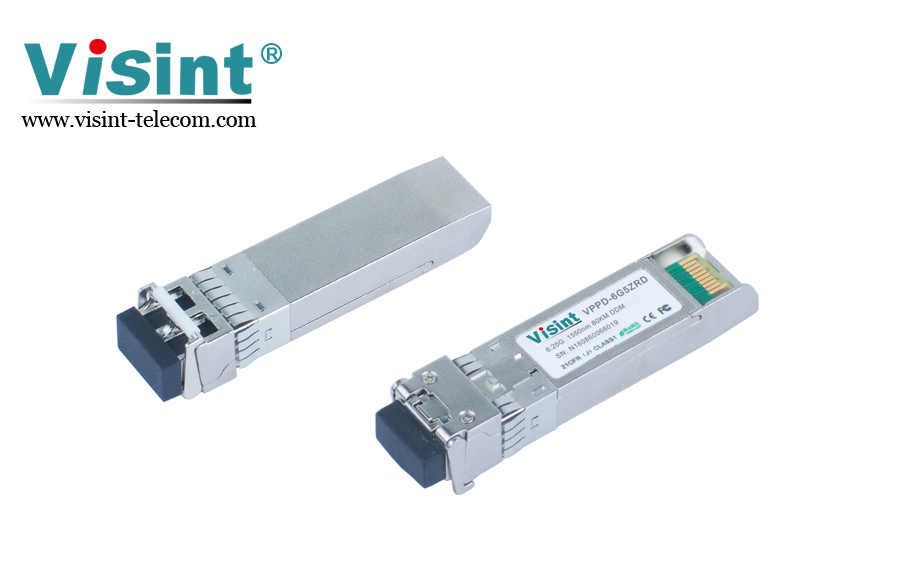

VPP(D)-6G5ZRD

SFP+

1550nm

6.25Gbps

SMF

LC

(0~4)dBm

≤-24dBm

80km

Yes/No

CWDM 6.25G SFP+

VPP(D)-6GCERD-XX

CWDM SFP+

CWDM1270~1610nm

6.25Gbps

SMF

LC

(-1~3)dBm

≤-16dBm

40km

Yes/No

VPP(D)-6GCZRD-XX

CWDM SFP+

CWDM1270~1610nm

6.25Gbps

SMF

LC

(0~4)dBm

≤-24dBm

80km

Yes/No

BIDI 6.25G SFP+

VBS(D)-6G23LRD

BIDI SFP+

Tx1270/Rx1330nm

6.25Gbps

SMF

LC

(-8~-1)dBm

≤-14dBm

10km

Yes/No

VBS(D)-6G32LRD

BIDI SFP+

Tx1330/Rx1270nm

6.25Gbps

SMF

LC

(-8~-1)dBm

≤-14dBm

10km

Yes/No

VBS(D)-6G23ERD

BIDI SFP+

Tx1270/Rx1330nm

6.25Gbps

SMF

LC

(0~4)dBm

≤-16dBm

40km

Yes/No

VBS(D)-6G32ERD

BIDI SFP+

Tx1330/Rx1270nm

6.25Gbps

SMF

LC

(0~4)dBm

≤-16dBm

40km

Yes/No
