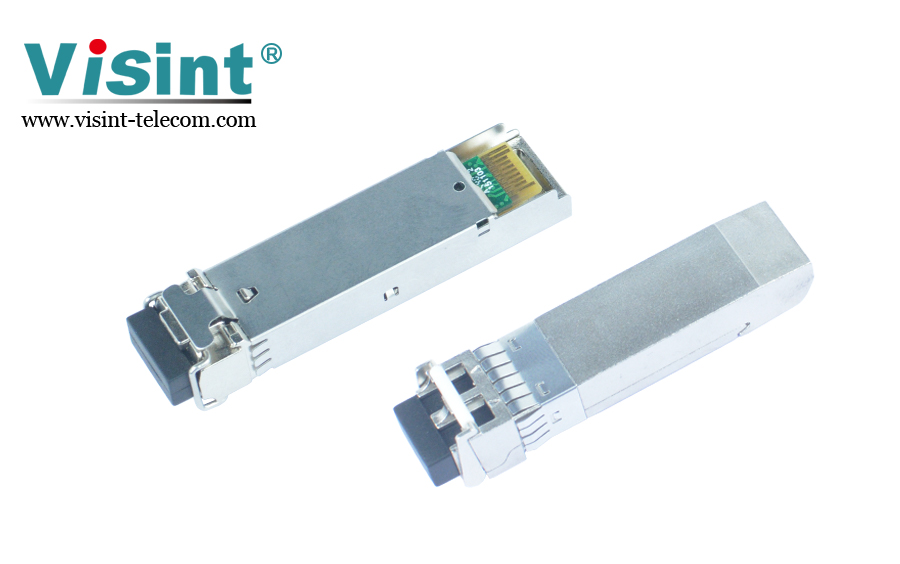

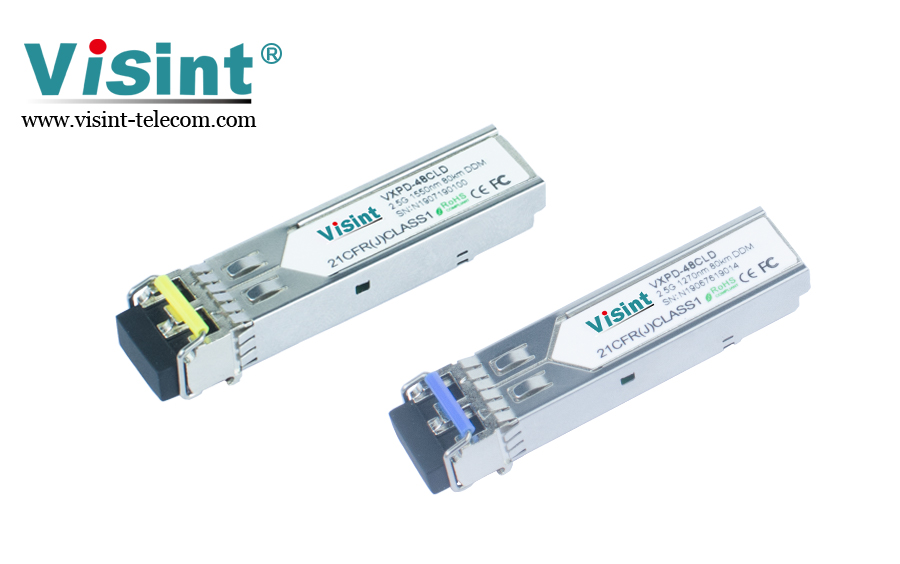

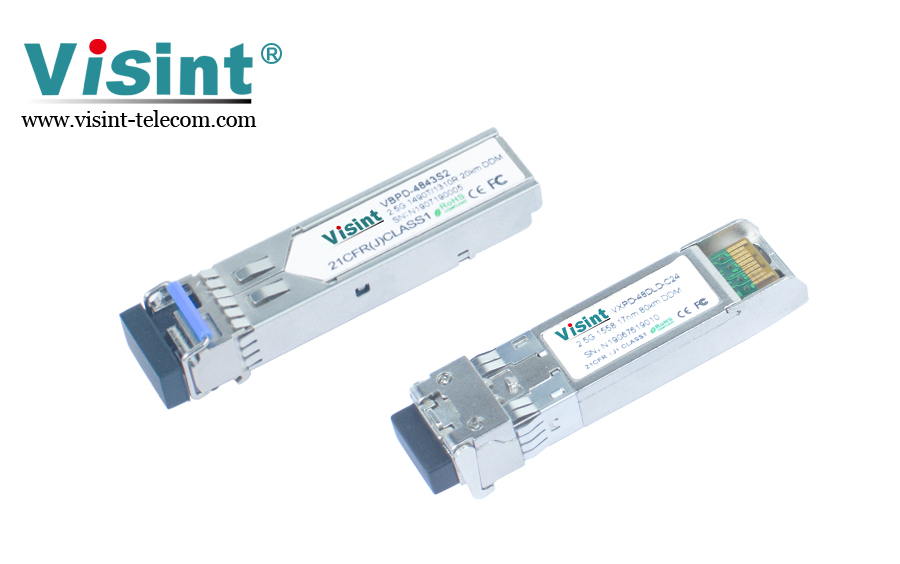

2.5G SFP Transceiver Module

Product Overview

Visint® small package pluggable (SFP) optical modules can widely provide Ethernet, SDH/SONET, and Fibre Channel (FC) design options, support hot plugging, and adopt industry standard interfaces.The core optical transceivers all use high-reliability lasers and PIN or APD receivers. A low-power solution with a single power supply of 3.3V is used to control energy consumption. According to the SFP MSA specification, it provides monitoring/alarm interfaces such as data loss (LOS), transmission failure (Tx_Fault), and laser shutdown (Tx_Dis). Real-time monitoring of diagnostic characteristics in accordance with SFF-8472 "Optical Transceiver Diagnostic Monitoring Interface": Transmitted optical power, received optical power, laser bias current, temperature, power supply voltage. Compliant with SFP MSA, IEEE802.3 and EEC RoHS 2002/95/EC standards. Our SFP transceiver modules with speeds of 155Mbps, 622Mbps, 1.0625Gbps, 1.25Gbps, 2.125Gbps, 2.488Gbps, 4.25Gbps are suitable for switches, routers, firewalls and other equipment. Widely used in telecommunications, data centers, security and military industries.

Inquiry Now

Visint® small package pluggable (SFP) optical modules can widely provide Ethernet, SDH/SONET, and Fibre Channel (FC) design options, support hot plugging, and adopt industry standard interfaces.The core optical transceivers all use high-reliability lasers and PIN or APD receivers. A low-power solution with a single power supply of 3.3V is used to control energy consumption. According to the SFP MSA specification, it provides monitoring/alarm interfaces such as data loss (LOS), transmission failure (Tx_Fault), and laser shutdown (Tx_Dis). Real-time monitoring of diagnostic characteristics in accordance with SFF-8472 "Optical Transceiver Diagnostic Monitoring Interface": Transmitted optical power, received optical power, laser bias current, temperature, power supply voltage. Compliant with SFP MSA, IEEE802.3 and EEC RoHS 2002/95/EC standards. Our SFP transceiver modules with speeds of 155Mbps, 622Mbps, 1.0625Gbps, 1.25Gbps, 2.125Gbps, 2.488Gbps, 4.25Gbps are suitable for switches, routers, firewalls and other equipment. Widely used in telecommunications, data centers, security and military industries.


Features

  • 3.3V power supply

  • Digital diagnostic monitoring (DDM):

    internal or external calibration

  • Transmission distance up to 120KM

  • Transmission rate up to 4.25Gbps

  • Single Cable Type, dual Cable Type, CWDM,

    DWDM multiple specifications are available

  • Compliant with RoHS 2002/95/EC

  • Compliant with SFP MSA and SFF-8472 standards

  • Operating temperature range: 0 ℃ ~ 70 ℃

Application

  • Security transmission system

  • Ethernet transmission system

  • Data center transmission system

  • Fibre Channel transmission system

  • Routing / server interface system

  • Switch-to-switch interface transmission system

  • Other fiber optic transmission systems




Model

Form Type

Wavelength

Rate

Cable Type

Interface

TX Power

Receiver Sensitivity

Distance

DDM

2.5G SFP

VXP(D)-488S

SFP

850nm

2.5Gbps

MMF

LC

(-10~-3)dBm

≤-18dBm

300m

Yes/No

VXP(D)-483S

SFP

1310nm

2.5Gbps

SMF

LC

(-10~-3)dBm

≤-18dBm

2km

Yes/No

VXP(D)-483S2D

SFP

1310nm

2.5Gbps

SMF

LC

(-5~0)dBm

≤-18dBm

20km

Yes/No

VXP(D)-483M4D

SFP

1310nm

2.5Gbps

SMF

LC

(-2~3)dBm

≤-18dBm

40km

Yes/No

VXP(D)-485M4D

SFP

1310nm

2.5Gbps

SMF

LC

(-2~3)dBm

≤-27dBm

40km

Yes/No

VXP(D)-485S2D

SFP

1550nm

2.5Gbps

SMF

LC

(-5~0)dBm

≤-18dBm

20km

Yes/No

VXP(D)-485M4D

SFP

1550nm

2.5Gbps

SMF

LC

(-2~3)dBm

≤-18dBm

40km

Yes/No

VXP(D)-485LD

SFP

1550nm

2.5Gbps

SMF

LC

(0~5)dBm

≤-28dBm

80km

Yes/No

CWDM 2.5G SFP

VXP(D)-48CM4D-XX

CWDM SFP

CWDM1270~1610nm

2.5Gbps

SMF

LC

(-2~3)dBm

≤-18dBm

40km

Yes/No

VXP(D)-48CLD-XX

CWDM SFP

CWDM1270~1610nm

2.5Gbps

SMF

LC

(0~5)dBm

≤-28dBm

80km

Yes/No

DWDM 2.5G SFP

VXP(D)-48DLD-CXX

DWDM SFP

ITU-GRID DWDM

2.5Gbps

SMF

LC

(0~5)dBm

≤-28dBm

80km

Yes/No

VXP(D)-48DUD-CXX

DWDM SFP

ITU-GRID DWDM

2.5Gbps

SMF

LC

(0~5)dBm

≤-30dBm

120km

Yes/No

BIDI 2.5G SFP

VBP(D)-4835S2D

BIDI SFP

Tx1310/Rx1550nm

2.5Gbps

SMF

LC

(-5~0)dBm

≤-18dBm

20km

Yes/No

VBP(D)-4853S2D

BIDI SFP

Tx1550/Rx1310nm

2.5Gbps

SMF

LC

(-5~0)dBm

≤-18dBm

20km

Yes/No

VBP(D)-4835M4D

BIDI SFP

Tx1310/Rx1550nm

2.5Gbps

SMF

LC

(-2~3)dBm

≤-19dBm

40km

Yes/No

VBP(D)-4853M4D

BIDI SFP

Tx1550/Rx1310nm

2.5Gbps

SMF

LC

(-2~3)dBm

≤-19dBm

40km

Yes/No

VBP(D)-4845LD

BIDI SFP

Tx1490/Rx1550nm

2.5Gbps

SMF

LC

(0~5)dBm

≤-28dBm

80km

Yes/No

VBP(D)-4854LD

BIDI SFP

Tx1550/Rx1490nm

2.5Gbps

SMF

LC

(0~5)dBm

≤-28dBm

80km

Yes/No
