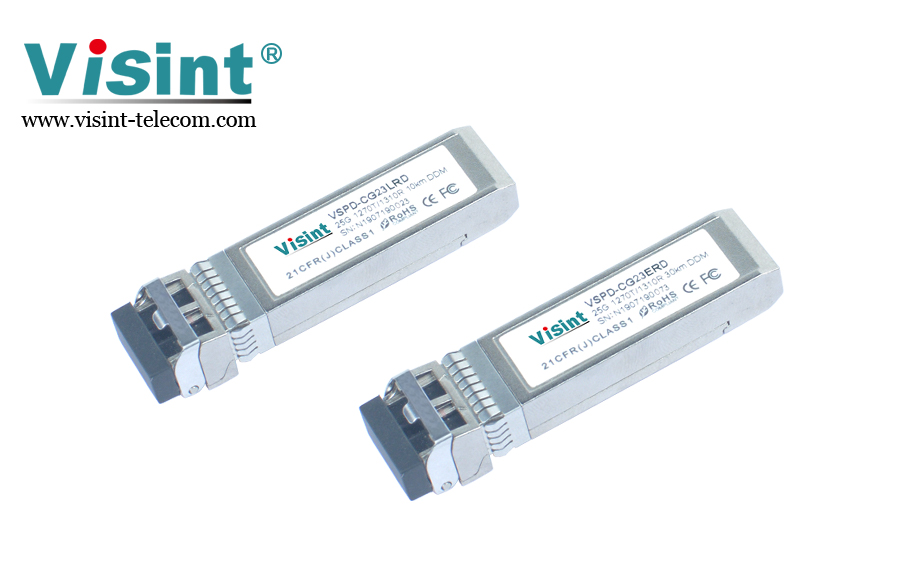

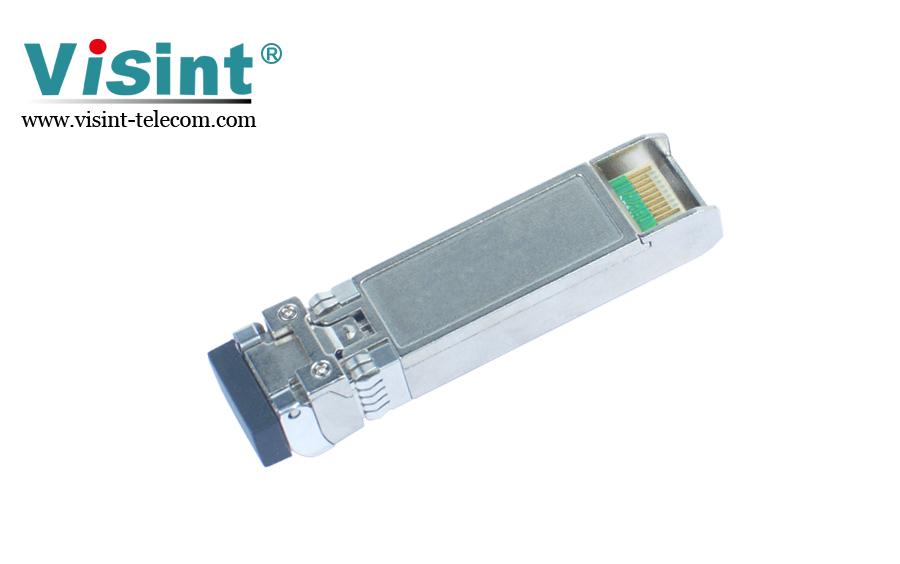

25G SFP28 Transceiver Module
Product Overview
Visint® SFP28 transceiver module complies with the SFP28 MSA SFF-8431, SFF-8432, IEEE802.3cc 25GBASE, and CPRI/eCPRI standards. The transmission rate is up to 25.78Gbps. It has the advantages of small size, low power consumption, and wide temperature range. It can transmits a distance of up to 40KM with FEC . It is designed for data center Ethernet, fiber storage, and 5G network CPRI/eCPRI applications.
Inquiry Now
Visint® SFP28 transceiver module complies with the SFP28 MSA SFF-8431, SFF-8432, IEEE802.3cc 25GBASE, and CPRI/eCPRI standards. The transmission rate is up to 25.78Gbps. It has the advantages of small size, low power consumption, and wide temperature range. It can transmits a distance of up to 40KM with FEC . It is designed for data center Ethernet, fiber storage, and 5G network CPRI/eCPRI applications.
Features
| Application
|
Model | Form Type | Wavelength | Rate | Cable Type | Interface | TX Power | Receiver Sensitivity | Distance | DDM |
25G SFP28 | |||||||||
VSP(D)-CG8SR | SFP28 | 850nm | 25Gbps | MMF | LC | (-8~+2)dBm | ≤-10dBm | 100m | Yes/No |
VSP(D)-CG3LR | SFP28 | 1310nm | 25Gbps | SMF | LC | (-7~-+2)dBm | ≤-11dBm | 10km | Yes/No |
VSP(D)-CG3ERE | SFP28 | 1310nm | 25Gbps | SMF | LC | (-3~-+2)dBm | ≤-21dBm | 40km | Yes/No |
VSP(D)-CGCLRD | SFP28 | CWDM | 25Gbps | SMF | LC | (-7~-+4)dBm | ≤-14dBm | 10km | Yes/No |
VSP(D)-CGDLRE | SFP28 | DWDM | 25Gbps | SMF | LC | (-3~-+2)dBm | ≤-14dBm | 10km | Yes/No |
