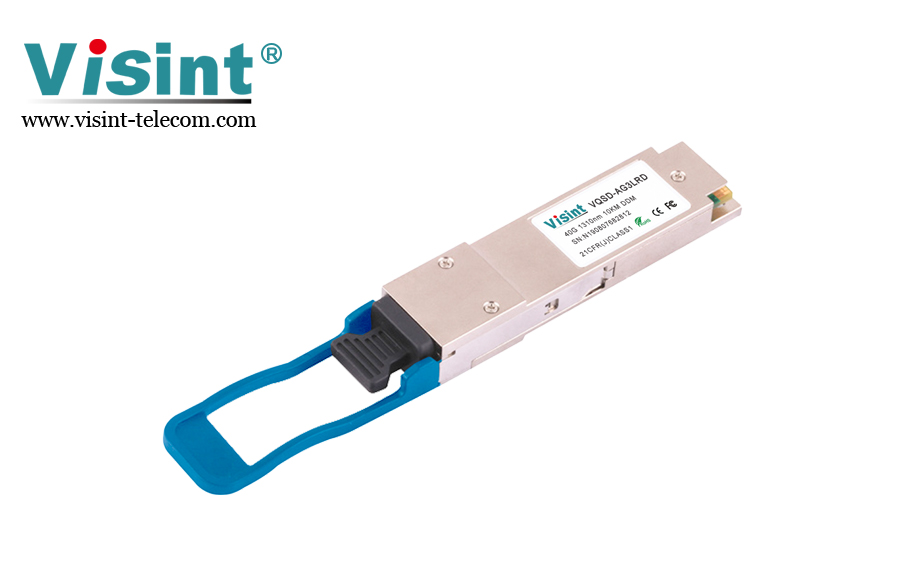

40G QSFP+ Transceiver Module

Product Overview

Visint® 40G QSFP + transceiver module complies with QSFP + MSA SFF-8436 and IEEE 802.3ba standards, and the total transmission rate can reach 41.25Gb/s. With low power consumption, small size, high rate and other characteristics. The multimode transceiver module adopts four 10.3125Gbps channel VCSEL laser array optical transmitters and four PIN photo-detector array receivers. The transmission distance of OM3 multimode fiber can reach 300M and the transmission distance of OM4 multimode fiber can reach 400M. The single-mode optical module converts four 10.3125Gbps channels into four CWDM channels (DFB laser array) optical signals, and multiplexes them to 41.25Gbps, which are output from the transmitter through SMF. The receiver receives 41.25Gbps optical signal input and demultiplexes it into 4 CWDM 10.3125Gbps channels. Received by PIN light detector, the transmission distance can reach 40KM, and it is widely used in various Ethernet devices such as switches, routers, data centers.

Inquiry Now

Visint® 40G QSFP + transceiver module complies with QSFP + MSA SFF-8436 and IEEE 802.3ba standards, and the total transmission rate can reach 41.25Gb/s. With low power consumption, small size, high rate and other characteristics. The multimode transceiver module adopts four 10.3125Gbps channel VCSEL laser array optical transmitters and four PIN photo-detector array receivers. The transmission distance of OM3 multimode fiber can reach 300M and the transmission distance of OM4 multimode fiber can reach 400M. The single-mode optical module converts four 10.3125Gbps channels into four CWDM channels (DFB laser array) optical signals, and multiplexes them to 41.25Gbps, which are output from the transmitter through SMF. The receiver receives 41.25Gbps optical signal input and demultiplexes it into 4 CWDM 10.3125Gbps channels. Received by PIN light detector, the transmission distance can reach 40KM, and it is widely used in various Ethernet devices such as switches, routers, data centers.


Features

  • QSFP + MSA SFF-8436 compliant

  • Rate up to 10.3125Gb/s per channel

  • Total Rate up to 41.25Gb/s

  • Transmission distance up to 40KM

  • Single-mode and multi-mode specifications

  • Built-in digital diagnostic function (DDM)

  • Working temperature: 0 ℃ ~ 70 ℃

  • Storage temperature: -40 ℃ ~ 85 ℃

  • RoHs-6 compliant (Lead-free)


Application

  • High-speed access

  • 40G Ethernet

  • Mass storage interconnect

  • High performance computing server data link

  • Interconnection of infinite broadband technology QDR and FDR



Model

Form Type

Wavelength

Rate

Cable Type

Interface

TX Power

Receiver Sensitivity

Distance

DDM

40G QSFP+

VQS(D)-AG8SR

QSFP+

850nm

40Gbps

MMF

LC

(-7~+0)dBm

≤-9.5dBm

100m

Yes/No

VQS(D)-AG8SR

QSFP+

850nm

40Gbps

MMF

LC

(-7~+0)dBm

≤-10dBm

300m

Yes/No

VQS(D)-AG3MRD

QSFP+

1310nm PSM4

40Gbps

SMF

LC

(-7~+0)dBm

≤-11.5dBm

2km

Yes/No

VQS(D)-AG3LRD

QSFP+

1310mm PSM4

40Gbps

SMF

LC

(-7~-+0)dBm

≤-12dBm

10km

Yes/No

VQS(D)-AGCMRD

QSFP+

1271mm

1291nm

1311nm

1331nm

40Gbps

SMF

LC

(-7~-+2)dBm

≤11.7dBm

2km

Yes/No

VQS(D)-AGCLRD

QSFP+

1271mm

1291nm

1311nm

1331nm

40Gbps

SMF

LC

(-7~-+2)dBm

≤13.7dBm

10km

Yes/No

VQS(D)-AGCERE

QSFP+

1271mm

1291nm

1311nm

1331nm

40Gbps

SMF

LC

(-3~-+2)dBm

≤-19dBm

40km

Yes/No
