Product Center
DCI BOX

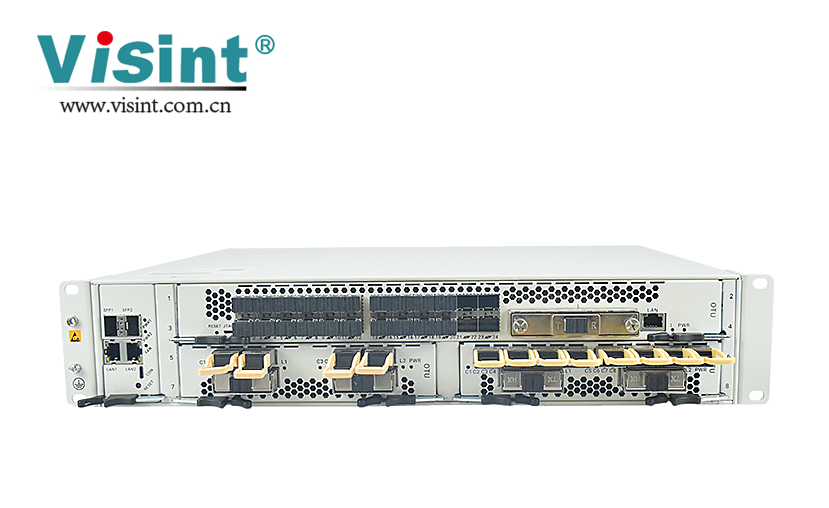

Vispace 1000-DCI-2 is a high-rate WDM transmission product developed by Visint®. It supports multi-service and large-capacity transmission networking applications. It is mainly launched for the data center interconnect of operators and Internet enterprises, and can also be applied to local networks/Metropolitan area network convergence layer and access layer long-distance network transmission applications. The chassis is only 2U, with 8 general service slots, and the performance of a single slot can be flexibly expanded to meet different service needs. It adopts advanced hardware architecture and no mid-board design, which improves the ventilation and heat dissipation capacity of the equipment, and the single slot capacity is up to 800Gbps, the full system supports a maximum of 3.2Tbps electrical layer processing capacity, providing customers with various transmission solutions with different capacities, different transmission distances, and intelligent business applications.
DCI BOX Equipment
Muxponder
DCI BOX Equipment
DCI BOX Equipment
Vispace 1000-DCI-2 is a high-rate WDM transmission product developed by Visint®. It supports multi-service and large-capacity transmission networking applications. It is mainly launched for the data center interconnect of operators and Internet enterprises, and can also be applied to local networks/Metropolitan area network convergence layer and access layer long-distance network transmission applications. The chassis is only 2U, with 8 general service slots, and the performance of a single slot can be flexibly expanded to meet different service needs. It adopts advanced hardware architecture and no mid-board design, which improves the ventilation and heat dissipation capacity of the equipment, and the single slot capacity is up to 800Gbps, the full system supports a maximum of 3.2Tbps electrical layer processing capacity, providing customers with various transmission solutions with different capacities, different transmission distances, and intelligent business applications.
DETAILS>

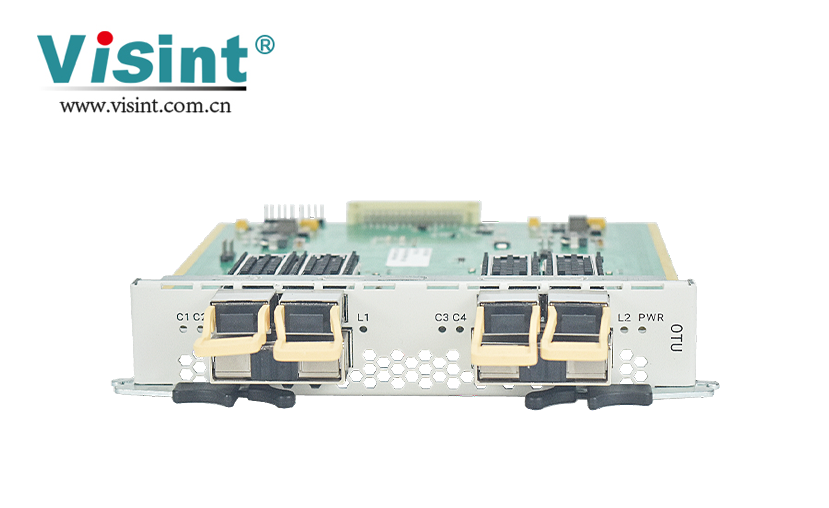

100G/200G CFP Muxponder
100G/200G CFP Muxponder
100G/200G CFP muxponder is a 12-channel 10G or 24-channel 10G Ethernet signal aggregation launched by Visint® to meet the high-bandwidth interconnects of optical transmission and data center. It follows the G.709 protocol multiplexing mapping and framing processing. After the 100G/200G coherent optical module completes the photoelectric conversion to the C-band coherent signal, to realize the input and output of the coherent signal. Provide high-quality solutions for transmissions such as insufficient margins of the existing systems and long optical cable transmission distances.
DETAILS>

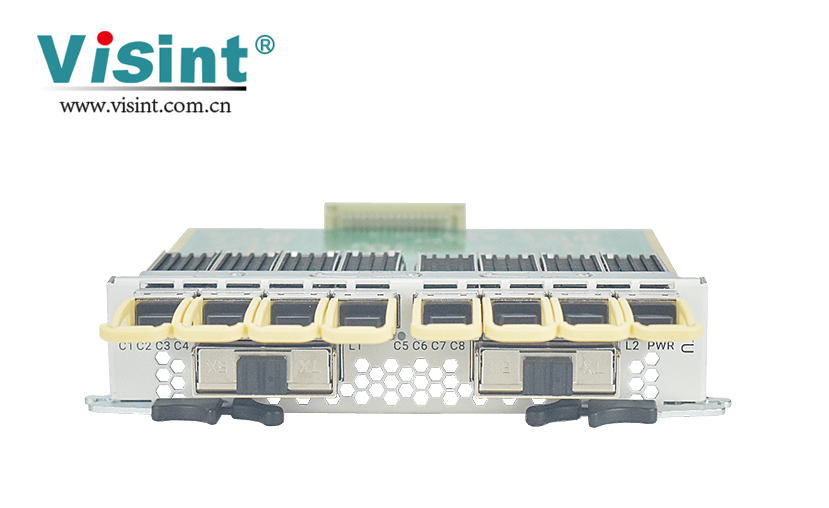

QSFP28 100G Muxponder
QSFP28 100G Muxponder
QSFP28 100G muxponder is a 12-channel 10G or 24-channel 10G Ethernet signal aggregation launched by Visint® to meet the high-bandwidth interconnects of optical transmission and data center. It follows the G.709 protocol multiplexing mapping and framing processing. After the 100G PAM4 optical module completes the photoelectric conversion into 100G signal, to realize the 10G signal input and output. Provide high-quality solutions for transmissions such as insufficient margins of the existing systems and long optical cable transmission distances.
DETAILS>

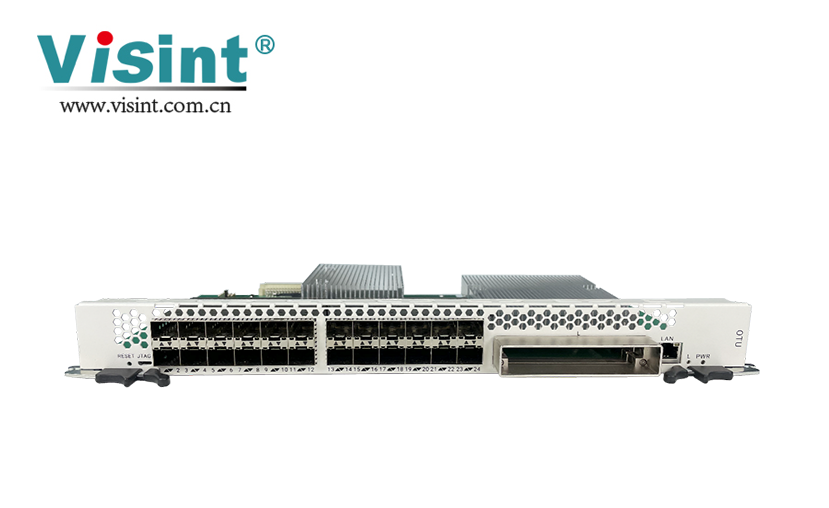

2*200G CFP2 Muxponder
2*200G CFP2 Muxponder
The 2*200G CFP2 muxponder is a 4*100G service access module designed and developed by Visint® for optical fiber links. It can realize the wavelength tunable of CFP2 coherent optical module and can be converted into DWDM standard wavelength optical signal. Interconnection with DWDM multiplexer/demultiplexer to realize wavelength division multiplexing transmission. It provides a high-quality solution for solving transmission lines with insufficient fiber resources and high fiber line loss.
DETAILS>

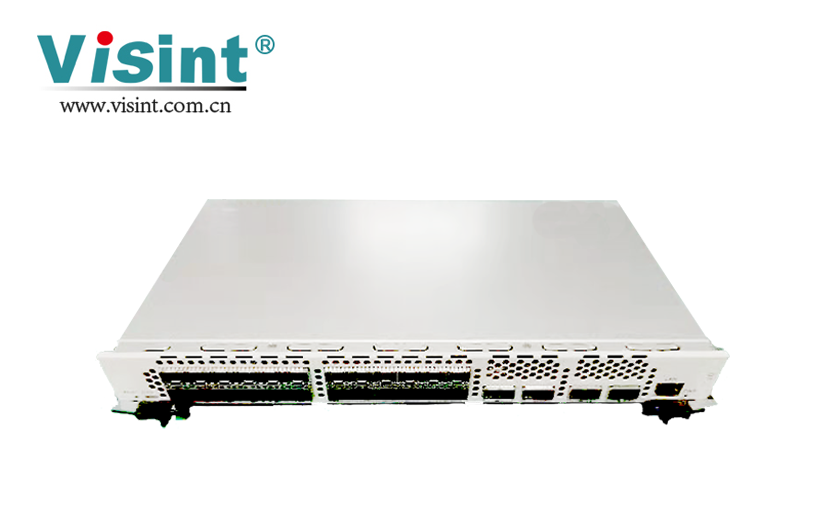

2* 400G CFP2 Muxponder
2* 400G CFP2 Muxponder
The 2* 400G CFP2 muxponder is a 8*100G service access module designed and developed by Visint® for optical fiber links. It can realize the wavelength tunable of CFP2 coherent optical module and can be converted into DWDM standard wavelength optical signal. Interconnection with DWDM multiplexer/demultiplexer to realize wavelength division multiplexing transmission. It provides a high-quality solution for solving transmission lines with insufficient fiber resources and high fiber line loss.
DETAILS>
