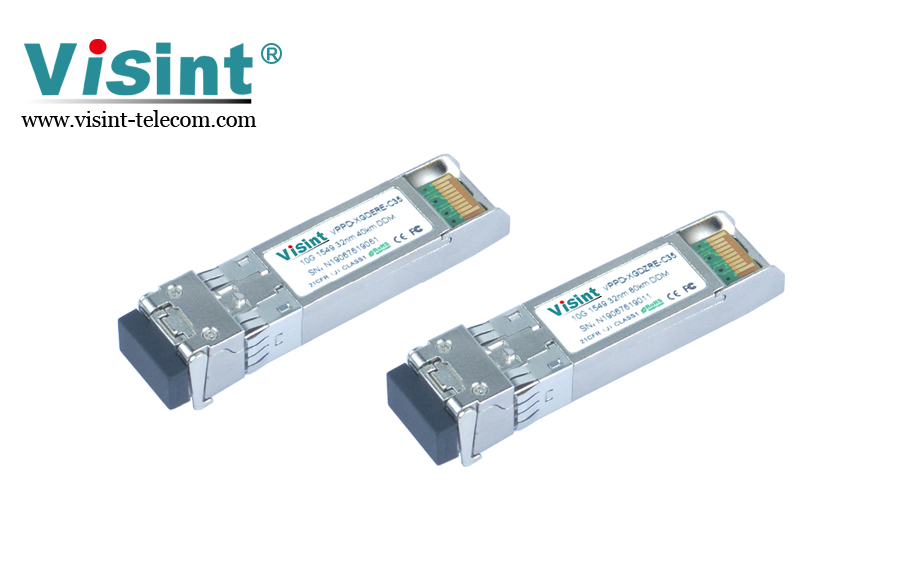

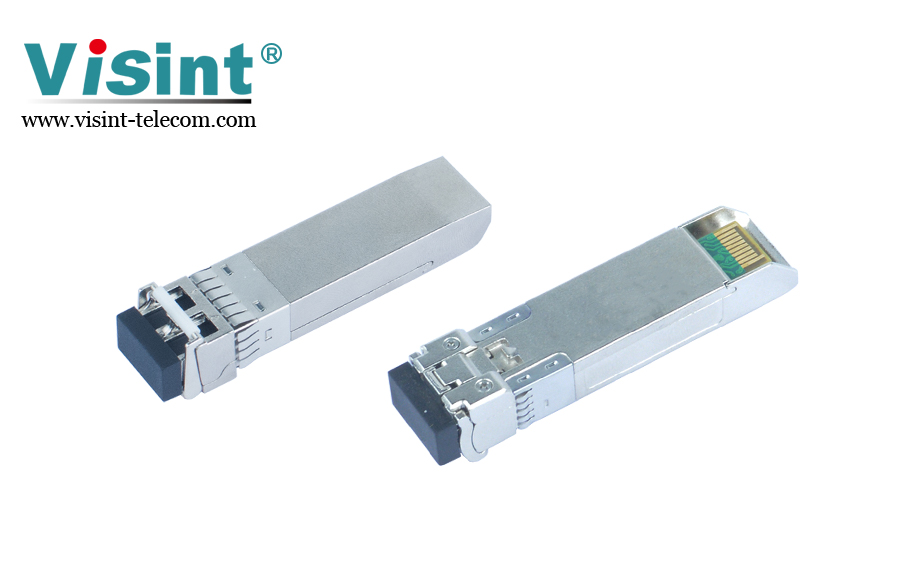

10G SFP+ Transceiver Module
Product Overview
Visint® SFP+ optical modules comply with SFP + MSA related conventions. Support hot plugging, and adopt industry standard LC interfaces.The core optical transceivers all use high-reliability lasers and PIN or APD receivers. A low-power solution with a single power supply of 3.3V is used to control energy consumption. According to the SFP MSA specification, it provides monitoring/alarm interfaces such as data loss (LOS), transmission failure (Tx_Fault), and laser shutdown (Tx_Dis). Real-time monitoring of diagnostic characteristics in accordance with SFF-8472 "Optical Transceiver Diagnostic Monitoring Interface": Transmitted optical power, received optical power, laser bias current, temperature, power supply voltage. Compliant with IEC 60825-1 Class 1/CDRH Class 1 Laser Eye Safe and RoHS directive. Our SFP+ transceiver modules at rate 6.25Gbps, 8.5Gbps and 10Gbps are suitable for switches, routers, firewalls and other equipment. Widely used in telecommunications, data centers, security and military industries.
Inquiry Now
Visint® SFP+ optical modules comply with SFP + MSA related conventions. Support hot plugging, and adopt industry standard LC interfaces.The core optical transceivers all use high-reliability lasers and PIN or APD receivers. A low-power solution with a single power supply of 3.3V is used to control energy consumption. According to the SFP MSA specification, it provides monitoring/alarm interfaces such as data loss (LOS), transmission failure (Tx_Fault), and laser shutdown (Tx_Dis). Real-time monitoring of diagnostic characteristics in accordance with SFF-8472 "Optical Transceiver Diagnostic Monitoring Interface": Transmitted optical power, received optical power, laser bias current, temperature, power supply voltage. Compliant with IEC 60825-1 Class 1/CDRH Class 1 Laser Eye Safe and RoHS directive. Our SFP+ transceiver modules at rate 6.25Gbps, 8.5Gbps and 10Gbps are suitable for switches, routers, firewalls and other equipment. Widely used in telecommunications, data centers, security and military industries.
Features
| Application
|
Model | Form Type | Wavelength | Rate | Cable Type | Interface | TX Power | Receiver Sensitivity | Distance | DDM |
10G SFP+ | |||||||||
VPP(D)-XG8SR | SFP+ | 850nm | 10Gbps | MMF | LC | (-6~-1)dBm | ≤-10dBm | 300m | Yes/No |
VPP(D)-XG3SR | SFP+ | 1310nm | 10Gbps | SMF | LC | (-8~-1)dBm | ≤-14dBm | 2km | Yes/No |
VPP(D)-XG3LRD | SFP+ | 1310nm | 10Gbps | SMF | LC | (-6~0)dBm | ≤-14dBm | 10km | Yes/No |
VPP(D)-XG3ERD | SFP+ | 1310nm | 10Gbps | SMF | LC | (-1~3)dBm | ≤-15dBm | 40km | Yes/No |
VPP(D)-XG5ERD | SFP+ | 1550nm | 10Gbps | SMF | LC | (-1~4)dBm | ≤-16dBm | 40km | Yes/No |
VPP(D)-XG5ZRD | SFP+ | 1550nm | 10Gbps | SMF | LC | (0~4)dBm | ≤-24dBm | 80km | Yes/No |
CWDM 10G SFP+ | |||||||||
VPP(D)-XGCERD-XX | CWDM SFP+ | CWDM1270~1610nm | 10Gbps | SMF | LC | (-1~3)dBm | ≤-16dBm | 40km | Yes/No |
VPP(D)-XGCZRD-XX | CWDM SFP+ | CWDM1270~1610nm | 10Gbps | SMF | LC | (0~4)dBm | ≤-24dBm | 80km | Yes/No |
DWDM 10G SFP+ | |||||||||
VPP(D)-XGDERD-CXX | DWDM SFP+ | ITU-GRID DWDM | 10Gbps | SMF | LC | (-1~3)dBm | ≤-16dBm | 40km | Yes/No |
VPP(D)-XGDZRD-CXX | DWDM SFP+ | ITU-GRID DWDM | 10Gbps | SMF | LC | (0~4)dBm | ≤-24dBm | 80km | Yes/No |
BIDI 10G SFP+ | |||||||||
VBS(D)-XG23LRD | BIDI SFP+ | Tx1270/Rx1330nm | 10Gbps | SMF | LC | (-6~-1)dBm | ≤-14dBm | 10km | Yes/No |
VBS(D)-XG32LRD | BIDI SFP+ | Tx1330/Rx1270nm | 10Gbps | SMF | LC | (-6~-1)dBm | ≤-14dBm | 10km | Yes/No |
VBS(D)-XG23LRD | BIDI SFP+ | Tx1270/Rx1330nm | 10Gbps | SMF | LC | (-2~2)dBm | ≤-14dBm | 20km | Yes/No |
VBS(D)-XG32LRD | BIDI SFP+ | Tx1330/Rx1270nm | 10Gbps | SMF | LC | (-2~2)dBm | ≤-14dBm | 20km | Yes/No |
VBS(D)-XG23ERD | BIDI SFP+ | Tx1270/Rx1330nm | 10Gbps | SMF | LC | (0~5)dBm | ≤-15dBm | 40km | Yes/No |
VBS(D)-XG32ERD | BIDI SFP+ | Tx1330/Rx1270nm | 10Gbps | SMF | LC | (0~5)dBm | ≤-15dBm | 40km | Yes/No |
VBS(D)-XG23ERD | BIDI SFP+ | Tx1270/Rx1330nm | 10Gbps | SMF | LC | (0~5)dBm | ≤-20dBm | 60km | Yes/No |
VBS(D)-XG32ERD | BIDI SFP+ | Tx1330/Rx1270nm | 10Gbps | SMF | LC | (0~5)dBm | ≤-20dBm | 60km | Yes/No |
