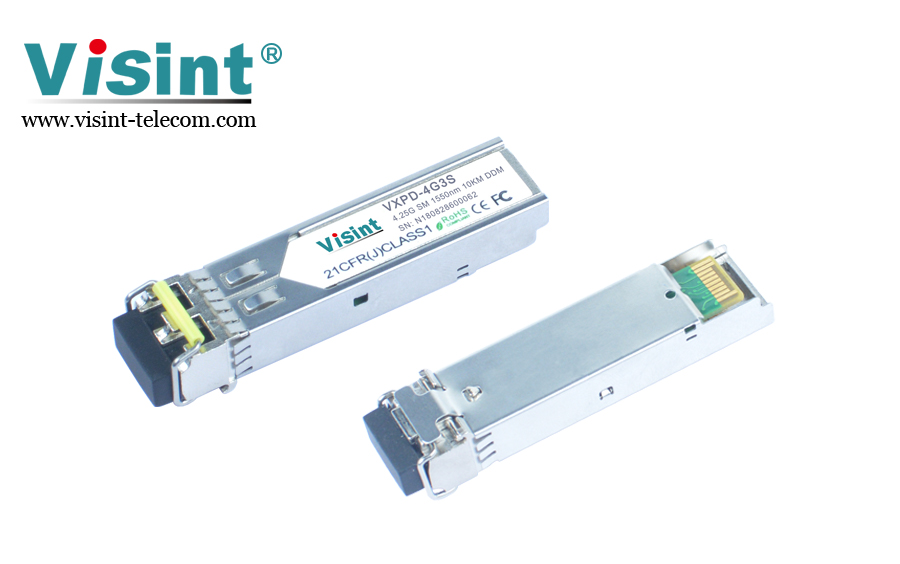

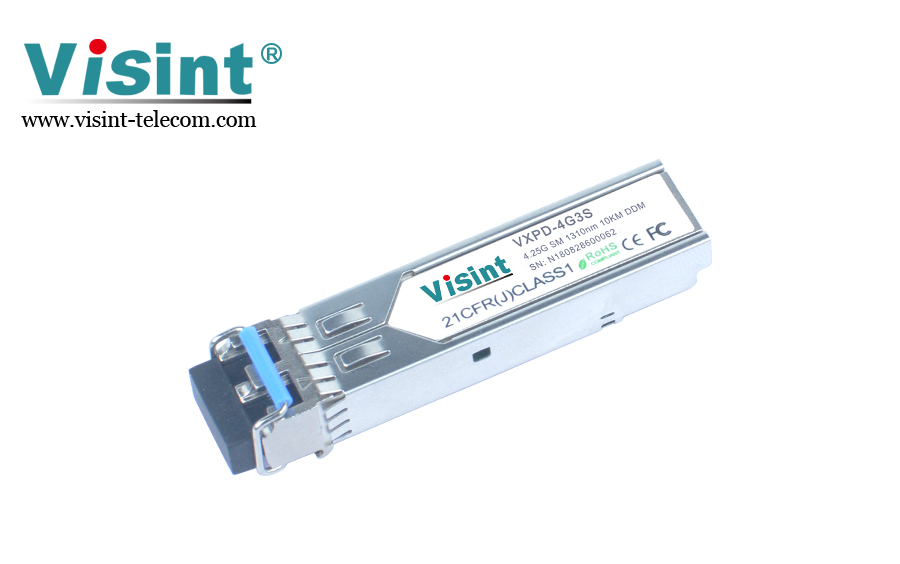

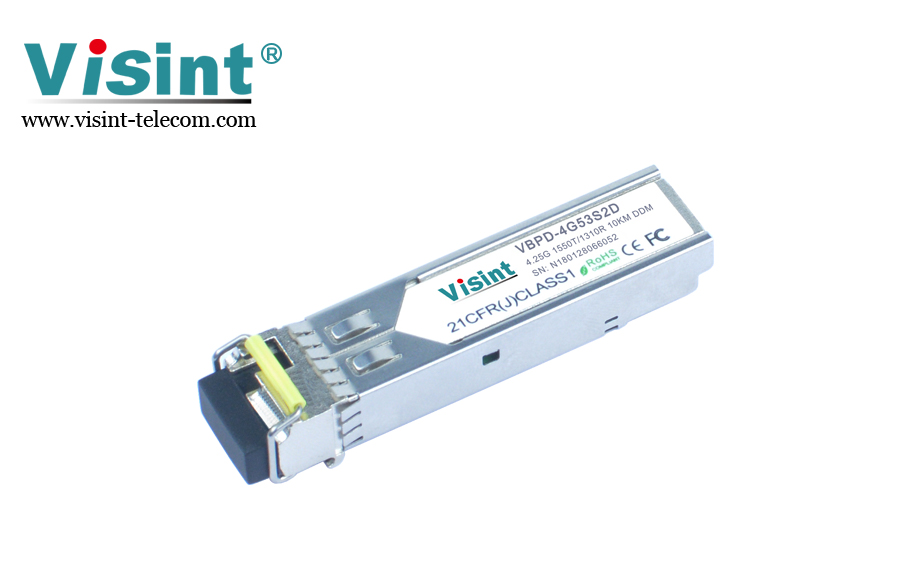

4.25G SFP Transceiver Module

Product Overview

Visint® small package pluggable (SFP) optical modules can widely provide Ethernet, SDH/SONET, and Fibre Channel (FC) design options, support hot plugging, and adopt industry standard interfaces.The core optical transceivers all use high-reliability lasers and PIN or APD receivers. A low-power solution with a single power supply of 3.3V is used to control energy consumption. According to the SFP MSA specification, it provides monitoring/alarm interfaces such as data loss (LOS), transmission failure (Tx_Fault), and laser shutdown (Tx_Dis). Real-time monitoring of diagnostic characteristics in accordance with SFF-8472 "Optical Transceiver Diagnostic Monitoring Interface": Transmitted optical power, received optical power, laser bias current, temperature, power supply voltage. Compliant with SFP MSA, IEEE802.3 and EEC RoHS 2002/95/EC standards. Our SFP transceiver modules with speeds of 155Mbps, 622Mbps, 1.0625Gbps, 1.25Gbps, 2.125Gbps, 2.488Gbps, 4.25Gbps are suitable for switches, routers, firewalls and other equipment. Widely used in telecommunications, data centers, security and military industries.
