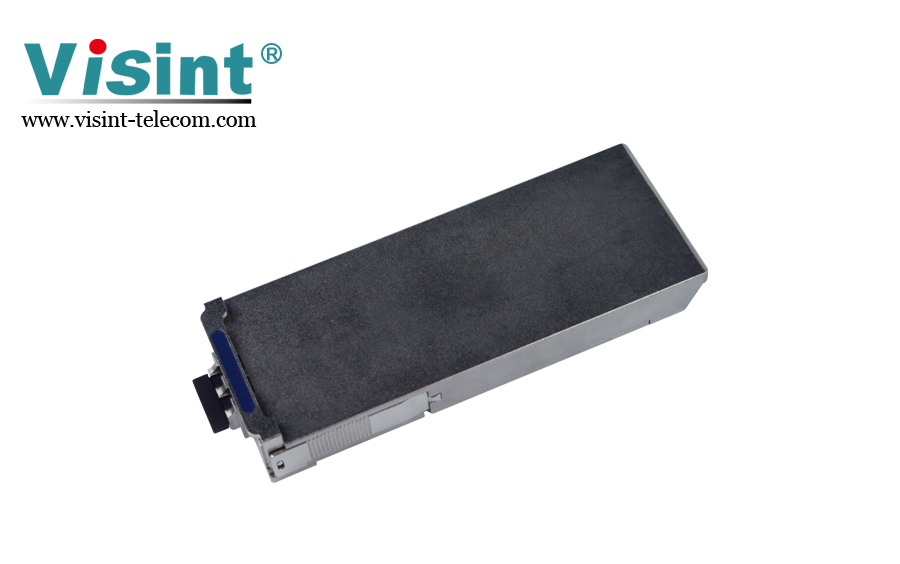

100G CFP2 Transceiver Module
Product Overview
Visint® CFP2 transceiver module complies with the CFP2 MSA, ITU-T G.959.1 2012 and IEEE802.3ba standards, and the total transmission rate can reach 112Gbps. It has low power consumption and high rate features, and is compatible with Ethernet and OTU4 applications. The multimode optical module uses ten 11.18Gbps channel VCSEL laser array optical transmitters and 10 PIN photo-detector array receivers. The transmission distance of OM3 multimode fiber can reach 300M, and the transmission distance of OM4 multimode fiber can reach 400M. The single-mode optical module uses 4 LAN-WDM channels (EML laser array) optical signals, and will be multiplexed to 112Gbps and output from the transmitter through SMF. The receiver receives 112Gbps optical signal input and demultiplexes it into 4 LAN-CWDM 28Gbps channels. Received by PIN light detector, the transmission distance can reach 40KM, and it is widely used in various Ethernet devices such as switches, routers, data centers.
Inquiry Now
Visint® CFP2 transceiver module complies with the CFP2 MSA, ITU-T G.959.1 2012 and IEEE802.3ba standards, and the total transmission rate can reach 112Gbps. It has low power consumption and high rate features, and is compatible with Ethernet and OTU4 applications. The multimode optical module uses ten 11.18Gbps channel VCSEL laser array optical transmitters and 10 PIN photo-detector array receivers. The transmission distance of OM3 multimode fiber can reach 300M, and the transmission distance of OM4 multimode fiber can reach 400M. The single-mode optical module uses 4 LAN-WDM channels (EML laser array) optical signals, and will be multiplexed to 112Gbps and output from the transmitter through SMF. The receiver receives 112Gbps optical signal input and demultiplexes it into 4 LAN-CWDM 28Gbps channels. Received by PIN light detector, the transmission distance can reach 40KM, and it is widely used in various Ethernet devices such as switches, routers, data centers.
Features
| Application
|
Model | Form Type | Wavelength | Rate | Cable Type | Interface | TX Power | Receiver Sensitivity | Distance | DDM |
100G CFP2 | |||||||||
VCP(D)-BG8SR | CFP2 | 850nm | 100Gbps | MMF | LC | (-7~+2)dBm | ≤-10dBm | 400m | Yes/No |
VCP(D)-BG3LRE | CFP2 | 1310nm | 100Gbps | SMF | LC | (-4.3~+4.5)dBm | ≤-10.3dBm | 10km | Yes/No |
VCP(D)-BG3ERE | CFP2 | 1310nm | 100Gbps | SMF | LC | (-2.9~+2.9)dBm | ≤-21.4dBm | 40km | Yes/No |
