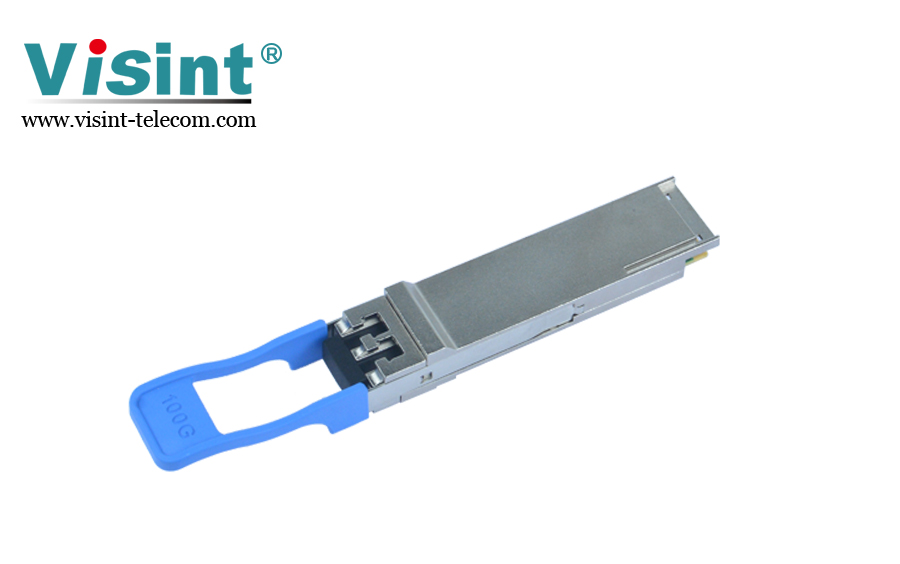

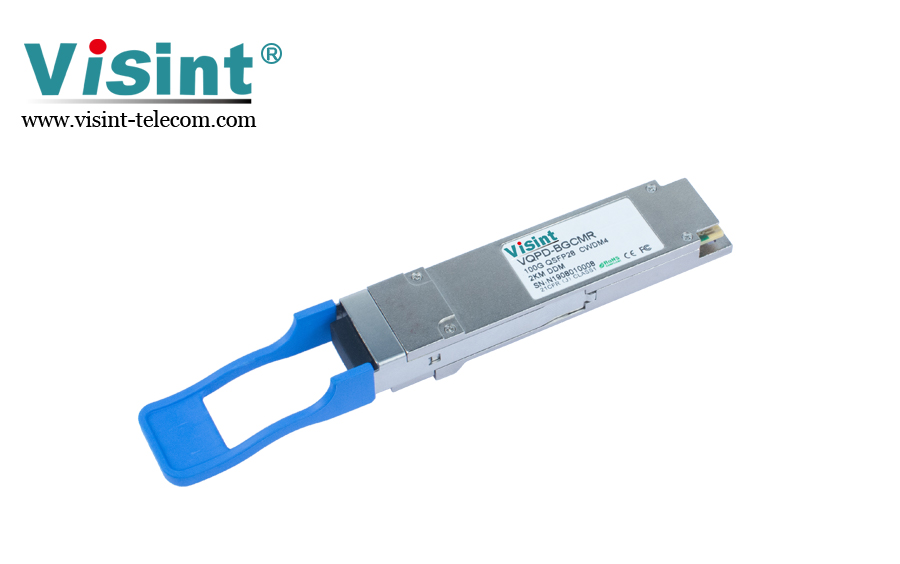

100G QSFP28 Transceiver Module
Product Overview
Visint® QSFP28 transceiver module complies with SFF-8636, MSA and IEEE802.3bm standards, and the total transmission rate can reach 103.1Gbps. Features low power consumption, small size and high speed. Including AOC, SR4, LR4, ER4, CWDM4, PSM4 and other series, adopting LC or MPO optical port. Mainly used for 100G data center internal network, data center interconnection and metropolitan area network and 5G wireless network applications.
Inquiry Now
Visint® QSFP28 transceiver module complies with SFF-8636, MSA and IEEE802.3bm standards, and the total transmission rate can reach 103.1Gbps. Features low power consumption, small size and high speed. Including AOC, SR4, LR4, ER4, CWDM4, PSM4 and other series, adopting LC or MPO optical port. Mainly used for 100G data center internal network, data center interconnection and metropolitan area network and 5G wireless network applications.
Features
| Application
|
Model | Form Type | Wavelength | Rate | Cable Type | Interface | TX Power | Receiver Sensitivity | Distance | DDM |
100G QSFP28 | |||||||||
VQP(D)-BG3MR | QSFP28 PSM4 | 1310nm | 100Gbps | SMF | LC | (-6~+2)dBm | ≤-12.6dBm | 2km | Yes/No |
VQP(D)-BG3LR | QSFP28 PSM4 | 1310nm | 100Gbps | SMF | LC | (-5~+2)dBm | ≤-12.6dBm | 10km | Yes/No |
VQP(D)-BGCMRD | QSFP28 CWDM4 | 1271nm 1291nm 1311nm 1331nm | 100Gbps | SMF | LC | (-6.5~+2.5)dBm | ≤-11.5dBm | 2km | Yes/No |
VQP(D)-BGCLRD | QSFP28 CWDM4 | 1271nm 1291nm 1311nm 1331nm | 100Gbps | SMF | LC | (-6.5~+2.5)dBm | ≤-13dBm | 10km | Yes/No |
VQP(D)-BGCLRE | QSFP28 LR4 | 1295.56nm 1300.05nm 1304.58nm 1309.14nm | 100Gbps | SMF | LC | (-4.3~+4.5)dBm | ≤-10.6dBm | 10km | Yes/No |
VQP(D)-BGCERE | QSFP28 ER4 | 1295.56nm 1300.05nm 1304.58nm 1309.14nm | 100Gbps | SMF | LC | (-2.5~+6.5)dBm | ≤-20.5dBm | 40km | Yes/No |
