100M SFP Transceiver Module

Product Overview

Visint® small package pluggable (SFP) optical modules can widely provide Ethernet, SDH/SONET, and Fibre Channel (FC) design options, support hot plugging, and adopt industry standard interfaces.The core optical transceivers all use high-reliability lasers and PIN or APD receivers. A low-power solution with a single power supply of 3.3V is used to control energy consumption. According to the SFP MSA specification, it provides monitoring/alarm interfaces such as data loss (LOS), transmission failure (Tx_Fault), and laser shutdown (Tx_Dis). Real-time monitoring of diagnostic characteristics in accordance with SFF-8472 "Optical Transceiver Diagnostic Monitoring Interface": Transmitted optical power, received optical power, laser bias current, temperature, power supply voltage. Compliant with SFP MSA, IEEE802.3 and EEC RoHS 2002/95/EC standards. Our SFP transceiver modules with speeds of 155Mbps, 622Mbps, 1.0625Gbps, 1.25Gbps, 2.125Gbps, 2.488Gbps, 4.25Gbps are suitable for switches, routers, firewalls and other equipment. Widely used in telecommunications, data centers, security and military industries.

Inquiry Now

Visint® small package pluggable (SFP) optical modules can widely provide Ethernet, SDH/SONET, and Fibre Channel (FC) design options, support hot plugging, and adopt industry standard interfaces.The core optical transceivers all use high-reliability lasers and PIN or APD receivers. A low-power solution with a single power supply of 3.3V is used to control energy consumption. According to the SFP MSA specification, it provides monitoring/alarm interfaces such as data loss (LOS), transmission failure (Tx_Fault), and laser shutdown (Tx_Dis). Real-time monitoring of diagnostic characteristics in accordance with SFF-8472 "Optical Transceiver Diagnostic Monitoring Interface": Transmitted optical power, received optical power, laser bias current, temperature, power supply voltage. Compliant with SFP MSA, IEEE802.3 and EEC RoHS 2002/95/EC standards. Our SFP transceiver modules with speeds of 155Mbps, 622Mbps, 1.0625Gbps, 1.25Gbps, 2.125Gbps, 2.488Gbps, 4.25Gbps are suitable for switches, routers, firewalls and other equipment. Widely used in telecommunications, data centers, security and military industries.


Features

  • 3.3V power supply

  • Digital diagnostic monitoring (DDM):

    internal or external calibration

  • Transmission distance up to 120KM

  • Transmission rate up to 4.25Gbps

  • Single Cable Type, dual Cable Type, CWDM,

    DWDM multiple specifications are available

  • Compliant with RoHS 2002/95/EC

  • Compliant with SFP MSA and SFF-8472 standards

  • Operating temperature range: 0 ℃ ~ 70 ℃

Application

  • Security transmission system

  • Ethernet transmission system

  • Data center transmission system

  • Fibre Channel transmission system

  • Routing / server interface system

  • Switch-to-switch interface transmission system

  • Other fiber optic transmission systems




Model

Form Type

Wavelength

Rate

Cable Type

Interface

TX Power

Receiver Sensitivity

Distance

DDM

100M SFP

VXP(D)-038S

SFP

850nm

100/155Mbps

MMF

LC

(-10~-4)dBm

≤-24dBm

2km

Yes/No

VXP(D)-030S

SFP

1310nm

100/155Mbps

SMF

LC

(-14~-8)dBm

≤-24dBm

2km

Yes/No

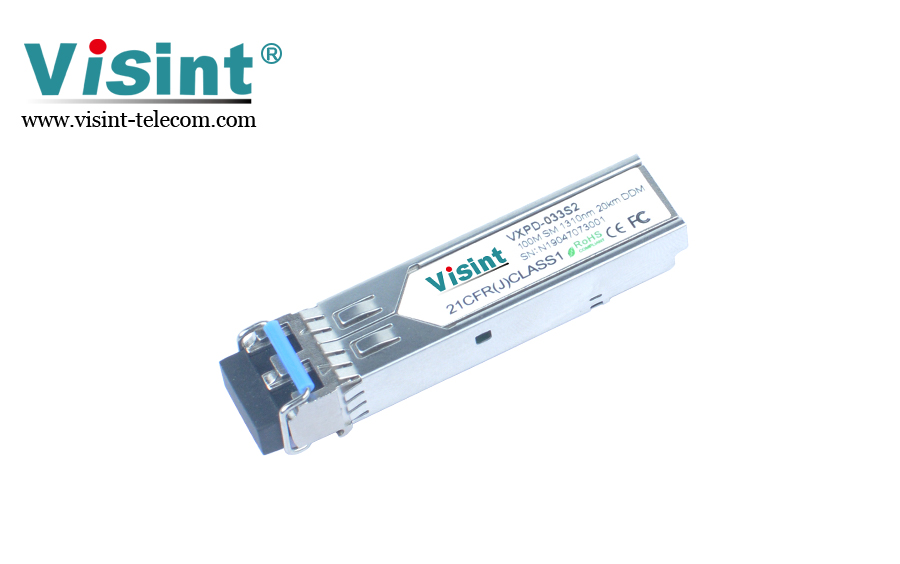

VXP(D)-033S2

SFP

1310nm

100/155Mbps

SMF

LC

(-14~-8)dBm

≤-32dBm

20km

Yes/No

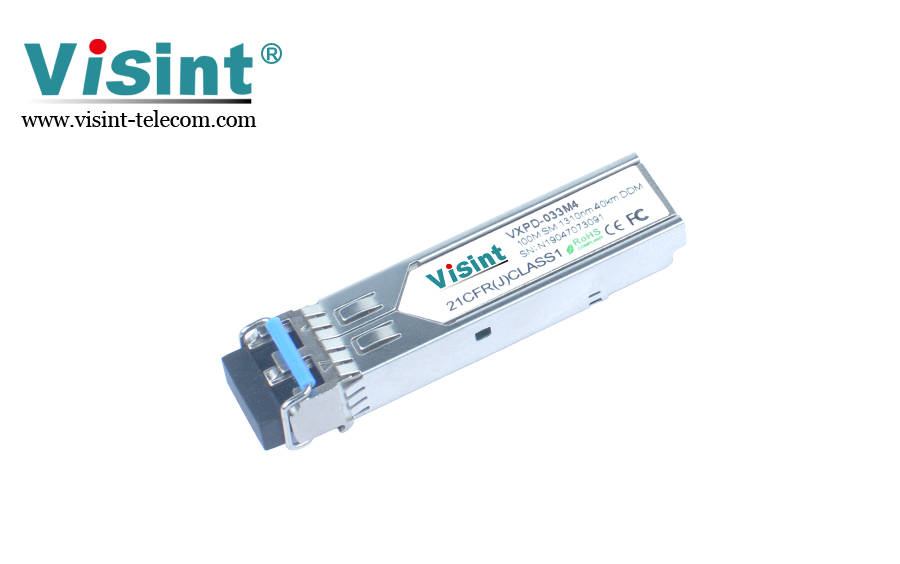

VXP(D)-033M4

SFP

1310nm

100/155Mbps

SMF

LC

(-7~-2)dBm

≤-34dBm

40km

Yes/No

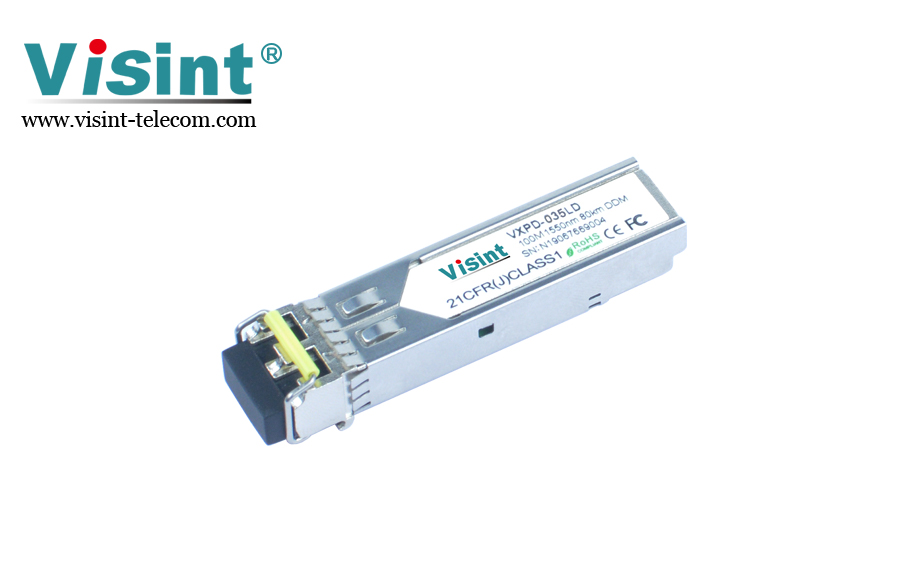

VXP(D)-035LD

SFP

1550nm

100/155Mbps

SMF

LC

(-5~0)dBm

≤-34dBm

80km

Yes/No

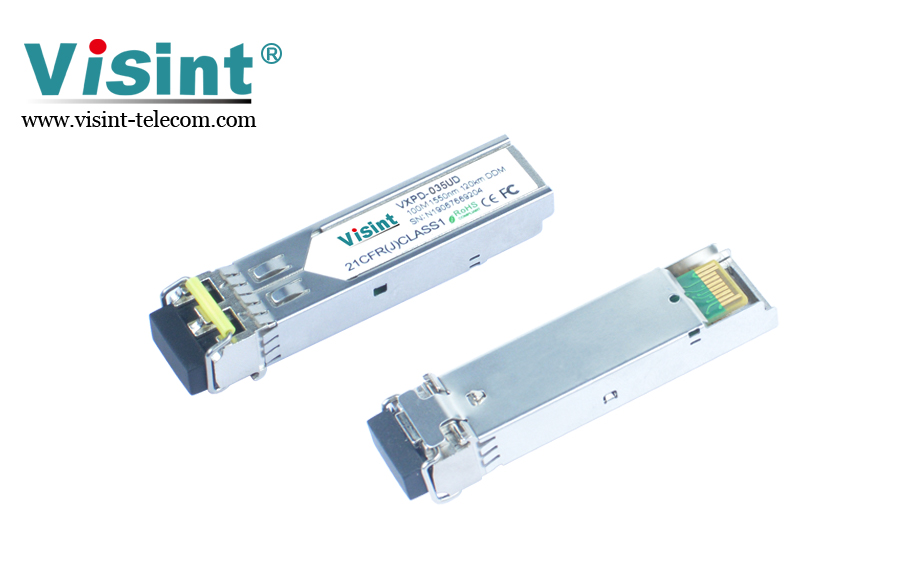

VXP(D)-035UD

SFP

1550nm

100/155Mbps

SMF

LC

(0~5)dBm

≤-34dBm

120km

Yes/No

CWDM 100M SFP

VXP(D)-03CM4D-XX

CWDM SFP

CWDM1270~1610nm

100/155Mbps

SMF

LC

(-7~-2)dBm

≤-34dBm

40km

Yes/No

VXP(D)-03CLD-XX

CWDM SFP

CWDM1270~1610nm

100/155Mbps

SMF

LC

(-5~0)dBm

≤-34dBm

80km

Yes/No

VXP(D)-03CUD-XX

CWDM SFP

CWDM1270~1610nm

100/155Mbps

SMF

LC

(0~5)dBm

≤-34dBm

120km

Yes/No

BIDI 100M SFP

VBP(D)-0334S2

BIDI SFP

Tx1310/Rx1490nm

100/155Mbps

SMF

LC

(-14~-8)dBm

≤-31dBm

20km

Yes/No

VBP(D)-0343S2

BIDI SFP

Tx1490/Rx1310nm

100/155Mbps

SMF

LC

(-14~-8)dBm

≤-31dBm

20km

Yes/No

VBP(D)-0335S2

BIDI SFP

Tx1310/Rx1550nm

100/155Mbps

SMF

LC

(-14~-8)dBm

≤-31dBm

20km

Yes/No

VBP(D)-0353S2

BIDI SFP

Tx1550/Rx1310nm

100/155Mbps

SMF

LC

(-14~-8)dBm

≤-31dBm

20km

Yes/No

VBP(D)-0334M4

BIDI SFP

Tx1310/Rx1490nm

100/155Mbps

SMF

LC

(-5~0)dBm

≤-32dBm

40km

Yes/No

VBP(D)-0343M4D

BIDI SFP

Tx1490/Rx1310nm

100/155Mbps

SMF

LC

(-5~0)dBm

≤-32dBm

40km

Yes/No

VBP(D)-0335M4

BIDI SFP

Tx1310/Rx1550nm

100/155Mbps

SMF

LC

(-5~0)dBm

≤-32dBm

40km

Yes/No

VBP(D)-0353M4D

BIDI SFP

Tx1550/Rx1310nm

100/155Mbps

SMF

LC

(-5~0)dBm

≤-32dBm

40km

Yes/No

VBP(D)-0345LD

BIDI SFP

Tx1490/Rx1550nm

100/155Mbps

SMF

LC

(-5~0)dBm

≤-34dBm

80km

Yes/No

VBP(D)-0354LD

BIDI SFP

Tx1550/Rx1490nm

100/155Mbps

SMF

LC

(-5~0)dBm

≤-34dBm

80km

Yes/No

VBP(D)-0345UD

BIDI SFP

Tx1490/Rx1550nm

100/155Mbps

SMF

LC

(0~5)dBm

≤-36dBm

120km

Yes/No

VBP(D)-0354UD

BIDI SFP

Tx1550/Rx1490nm

100/155Mbps

SMF

LC

(0~5)dBm

≤-36dBm

120km

Yes/No

Copper 100M SFP

VBP(D)-00R3

Copper SFP

-

100Mbps

-

RJ45

-

-

100M

-

VBP(D)-00R1

Copper SFP

-

10/100Mbps

-

RJ45

-

-

100M

-
