100G CFP2 Coherent Transponder
Product Overview

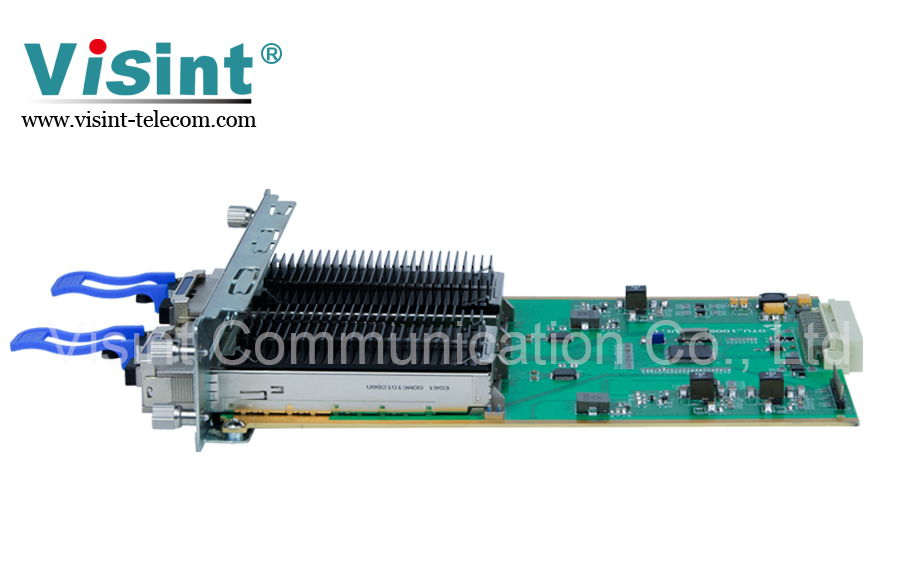

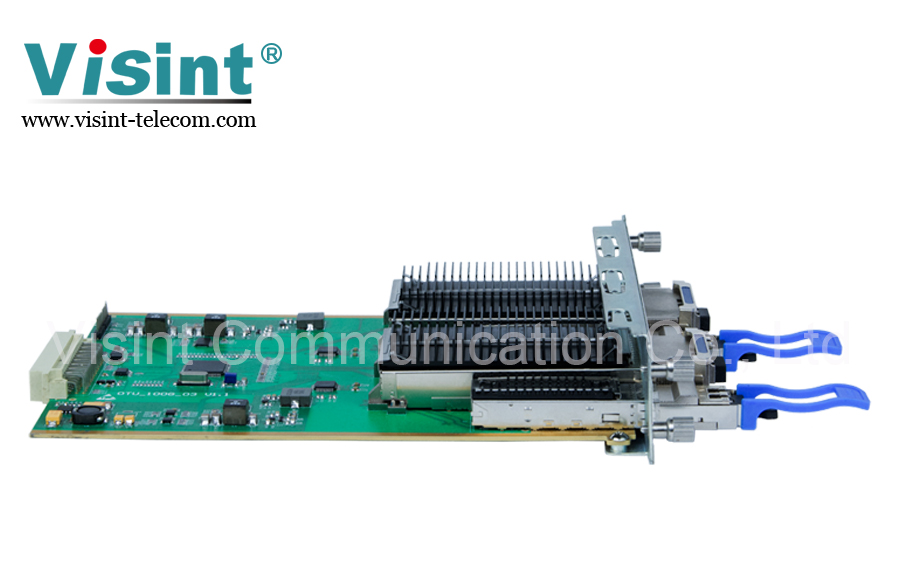

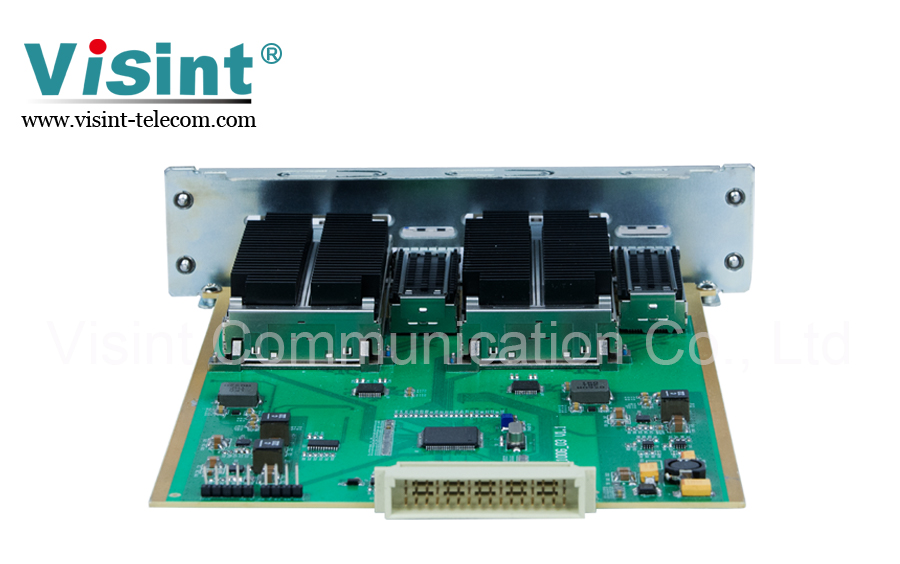

100G CFP2 OTU board is a 100G service access module designed by Visint for optical fiber links. It can realize CFP2 coherent optical module or 4*25G incoherent optical module with adjustable output optical power and wavelength in C-band, and can be converted into DWDM standard wavelength optical signal. It is suitable for SDH, SAN, SONET, ETHERNET, OTN, data center interconnection with DWDM multiplexer/demultiplexer to realize wavelength division multiplexing transmission. It provides a high-quality solution for solving transmission lines with insufficient fiber resources and high fiber line loss.
Inquiry Now
100G CFP2 OTU board is a 100G service access module designed by Visint® for optical fiber links. It can realize CFP2 coherent optical module or 4*25G incoherent optical module with adjustable output optical power and wavelength in C-band, and can be converted into DWDM standard wavelength optical signal. It is suitable for SDH, SAN, SONET, ETHERNET, OTN, data center interconnection with DWDM multiplexer/demultiplexer to realize wavelength division multiplexing transmission. It provides a high-quality solution for solving transmission lines with insufficient fiber resources and high fiber line loss.
Supporting CWDM or DWDM transmission, wavelength conversion.
The single board supports 2 channels 100G bidirectional or 4 channels unidirectional service access
Supporting 100G CFP2 coherent optical wavelength tunable and 4*25G CFP2 incoherent optical module.
Supporting multiple client-side service access: 100GBase-SR4/CWDM4/LR4/PSM4/OTU4.
Supporting SNMP-based unified network management platform, network management mode CLI, WEB, NetRiver (graphical interface).
Supporting CDR function, which can optimize output, DDM signal monitoring and no optical signal shutdown function.
Supporting software to close the port.
System Parameter | Technical Index | |
Maximum capacity of single card | 2*100G bidirectional transmission, 4*100G unidirectional transmission. | |
Wavelength range | CWDM: 1271~1611nm, DWDM: C-Band (100GHZ or 50GHZ). | |
Service access types | SDH, SAN, SONET, ETHERNET, OTN. | |
3R technology | 3R functions: (Re-amplifying), (Retiming), (Re-shaping). | |
Network management functions | CDR function (DDM real-time monitoring), no optical signal shutdown function, service access one-way or bidirectional setting. | |
Network management mode | CLI , NetRiver, WEB. | |
Product dimension | 177 (W)*40(H)*225(D)(mm). | |
Environmental requirements | Working temperature | -10℃ ~ 70℃. |
Storage temperature | -40℃ ~ 80℃. | |
Relative humidity | 5% ~ 95% no condensation. | |
Safety and EMC | Compliance with FCC, UL, CE, TUV, CSA standards. | |
Power consumption | <27W. |
Visint® Vispace 1000 series product wavelength conversion card (OTU) is widely used to perform 3R amplification (Re-amplifying, Retiming, Re-shaping) on various types of access service signals through the wavelength conversion board. Then the converted wavelength required for wavelength system transmission is coordinated with the multiplexer and splitter to transmit.

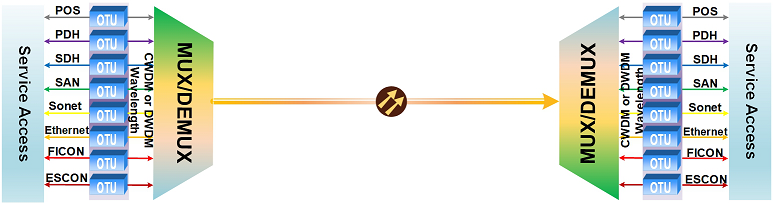

Figure: OTU Application
