100G Incoherent Muxponder
Product Overview

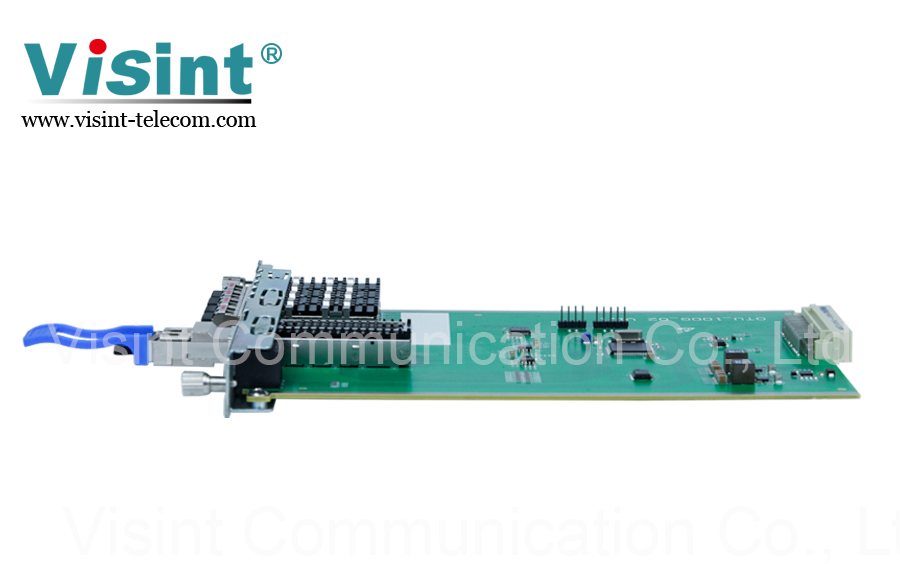

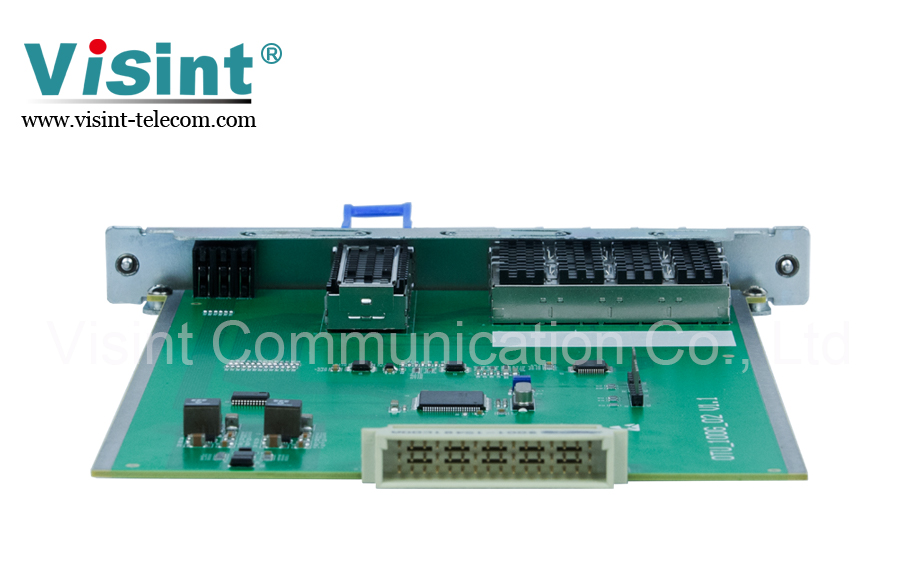

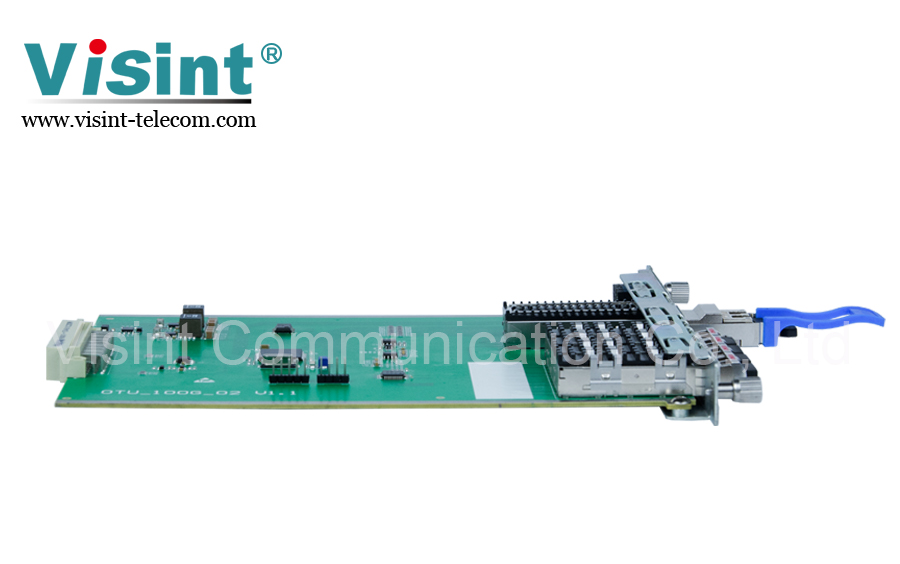

100G OTU board is a 100G service access module designed by Visint® for optical fiber links. It can perform 3R (re-amplification, reshaping, retiming) for 103.125Gbit/s~111.81Gbit/s services with arbitrary rate protocols, convertible to 4X25G DWDM standard wavelength optical signal. Interconnection with DWDM multiplexer/demultiplexer to realize wavelength division multiplexing transmission. It provides a high-quality solution for solving transmission lines with insufficient fiber resources and high fiber line loss.
Inquiry Now
100G OTU board is a 100G service access module designed by Visint® for optical fiber links. It can perform 3R (re-amplification, reshaping, retiming) for 103.125Gbit/s~111.81Gbit/s services with arbitrary rate protocols, convertible to 4X25G DWDM standard wavelength optical signal. Interconnection with DWDM multiplexer/demultiplexer to realize wavelength division multiplexing transmission. It provides a high-quality solution for solving transmission lines with insufficient fiber resources and high fiber line loss.
Supporting DWDM transmission, wavelength conversion.
The single board card supports 1-way 103.125 Gbit/s~111.81 Gbit/s two-way or one-way service access.
Supporting multiple client-side service access: 100GBase-SR4/CWDM4/LR4/PSM4. Line side 4X25G.
Supporting SNMP-based unified network management platform, network management mode CLI, WEB, NetRiver (graphical interface).
Supporting CDR function, which can optimize output, DDM signal monitoring and ALS (Automatic Laser Shutdown) function.
Supporting software to close the port.
System Parameter | Technical Index | |
Maximum capacity of single card | 1*100G bidirectional transmission, 1*100G unidirectional transmission. | |
Wavelength range | DWDM: C-Band (100GHZ or 50GHZ). | |
Service access type | 100GE、OTU4. | |
3R technology | 3R functions: (Re-amplifying), (Retiming), (Re-shaping). | |
Network management functions | CDR function (DDM real-time monitoring), ALS (Automatic Laser Shutdown) function, service access one-way or bidirectional setting. | |
Network management mode | CLI , NetRiver, WEB. | |
Product dimension | 177(W)*20(H)*225(D)(mm). | |
Environmental requirements | Working temperature | -10℃ ~ 70℃. |
Storage temperature | -40℃ ~ 80℃. | |
Relative humidity | 5% ~ 95% no condensation. | |
Safety and EMC | Compliance with FCC, UL, CE, TUV, CSA standards. | |
Power consumption | <13W. | |
Visint® Vispace 1000 series product wavelength conversion card (OTU) is widely used to perform 3R amplification (Re-amplifying, Retiming, Re-shaping) on various types of access service signals through the wavelength conversion board. Then the converted wavelength required for wavelength system transmission is coordinated with the multiplexer and splitter to transmit.
Figure: OTU Application
