OSS Optical Selective System(two-channel)

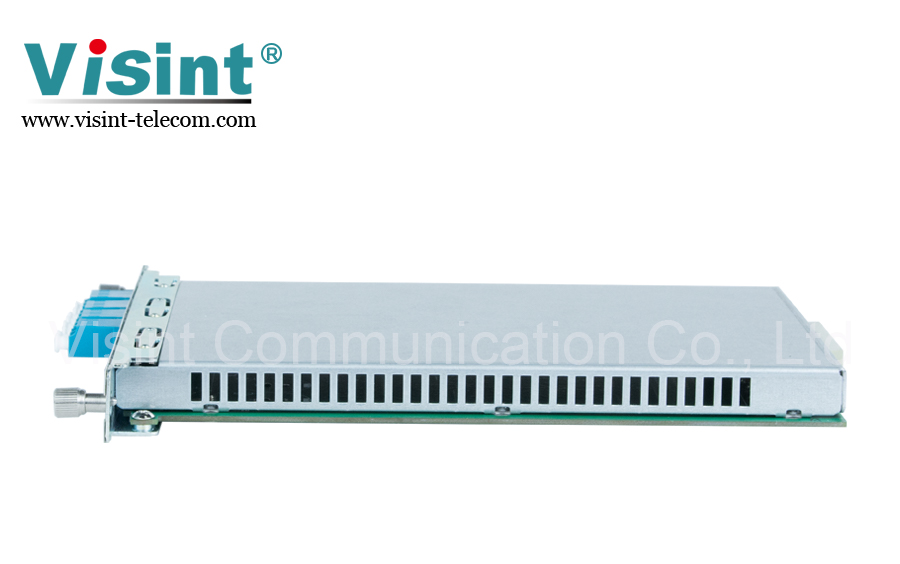

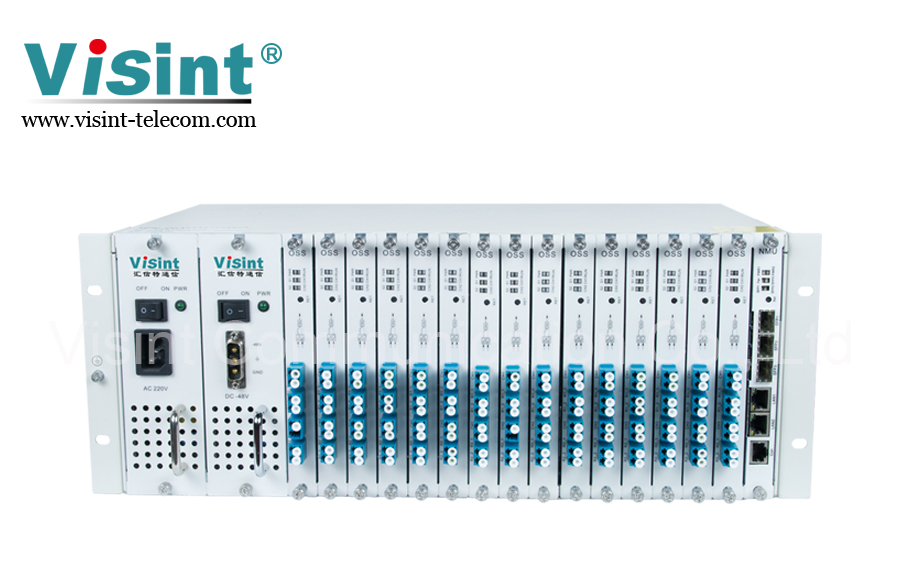

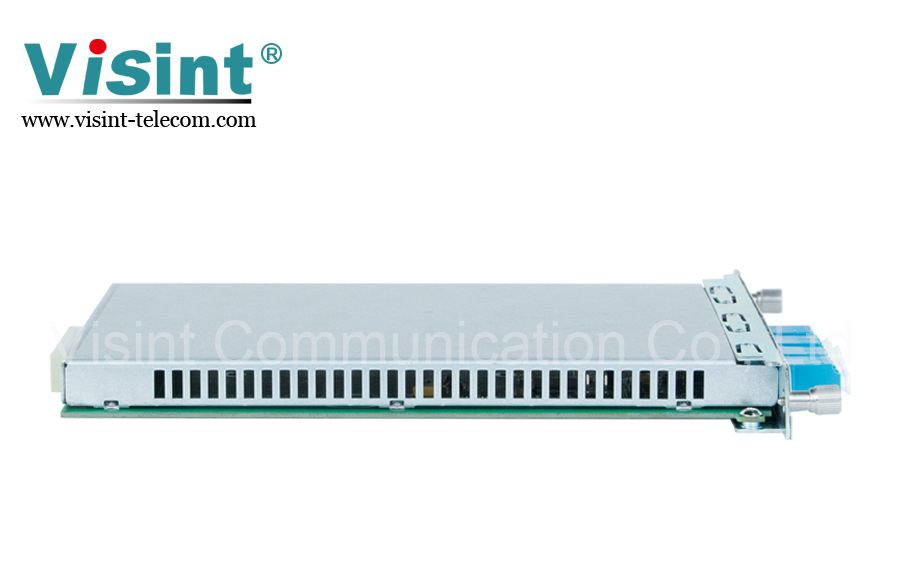

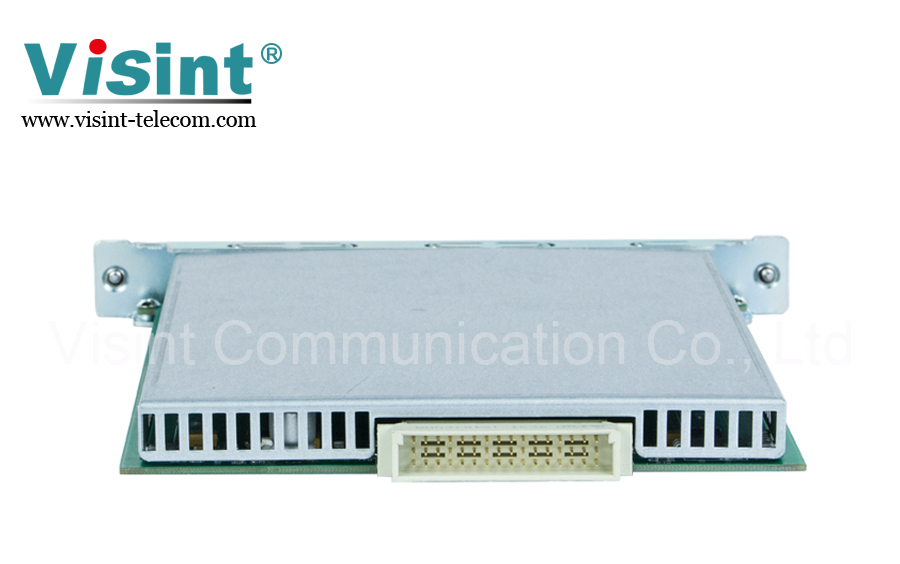

Product Overview
The OSS optical protection board is a protection board developed by Visint to ensure the important fiber routing/device security communication. At the transmitting end, the optical channel selection device is used to route the transmission optical channel. In addition, the optical signal can only be transmitted along the working channel or the alternate channel (choose one from two), it can provide real-time monitoring of the active and standby fibers (and simultaneous optical power meter monitoring), which can effectively avoid the possibility of simultaneous blocking of the active and standby routing fibers.
Inquiry Now
The OSS optical protection board is a protection board developed by Visint® to ensure the important fiber routing/device security communication. At the transmitting end, the optical channel selection device is used to route the transmission optical channel. In addition, the optical signal can only be transmitted along the working channel or the alternate channel (choose one from two), it can provide real-time monitoring of the active and standby fibers (and simultaneous optical power meter monitoring), which can effectively avoid the possibility of simultaneous blocking of the active and standby routing fibers.
Supporting single-mode, multi-mode optical route selection protection.
Supporting optical path 2 select 1 protection function.
Supporting automatic and manual working modes.
Supporting the power-down optical path state retention function.
Wide optical power monitoring range: -50dBm~+25dBm.
Short optical path protection switching time: ≤25ms.
Supporting SNMP-based unified network management platform, network management mode CLI, WEB, NetRiver (graphical interface).
Supporting local and remote control.
System Parameter | Technical Index | |
Wavelength range | 1310±50nm & 1550±50nm. | |
Monitoring optical power range | +25dBm ~ -50dBm. | |
Insertion loss | OSS protection | ≤ 1.5dB. |
Accuracy of optical power measurement | ≤0.5dB (+20dBm ~ -50dBm). ≤1.0dB (-40dBm ~ -50dBm). | |
Optical power resolution | ≤0.01dB. | |
Wavelength dependent loss | ≤0.25dB. | |
Polarization dependent loss | ≤0.1dB. | |
Switching time | ≤20ms. | |
Return loss | ≥45dB. | |
Crosstalk | ≥55dB. | |
Network management mode | CLI, NetRiver, WEB. | |
Product dimension | 177 (W)*20(H)*225(D)(mm). | |
Environmental requirements | Working temperature | -10℃ ~ 70℃. |
Storage temperature | -40℃ ~ 80℃. | |
Relative humidity | 5% ~ 95% no condensation. | |
Safety and EMC | Compliance with FCC, UL, CE, TUV, CSA standards. | |
Power consumption | <5W. | |
Visint® Vispace 1000 series optical line protection products effectively solve the problems of fiber transmission damage, line interruption, equipment power failure, and board failure, which seriously affect the stability of the transmission network in the existing network. It solves the practical problems of causing great pressure on customers, self-efficiency and line maintenance.
The OLP optical protection solution is applied to the protection of the optical line. It is necessary to add OLP optical protection equipment to the optical transmission equipment at both ends. At the same time, it is necessary to provide different routing lines for the main and standby, and can be used together with the dispersion compensation module and the amplification module. Supports dual-fiber bidirectional, single-fiber bidirectional and other transparent transmissions, with backup-fiber monitoring function, switching time in case of failure is less than 25ms, enabling fast switching of optical lines.

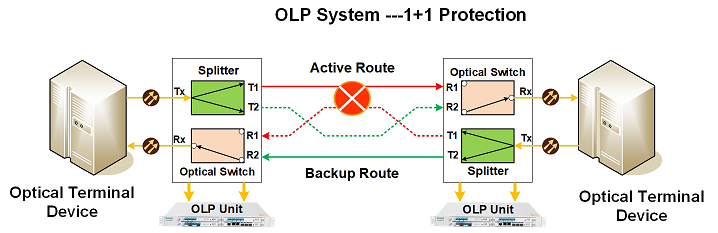

Figure 1: OLP Point to Point Protection Application Solution
The OBP optical bypass protection solution is applied to bypass single-site or single-device faults, maintain connectivity of the entire network, supports with heartbeat bypass function and with amplified bypass function, and the bypass time is less than 25ms when fault occurs. Quick bypass when there is a problem such as equipment failure or power failure.
Figure 2: Optical Bypass Protection Ring Network Solution
