OLP 1+1 Optical Line Protection
Product Overview

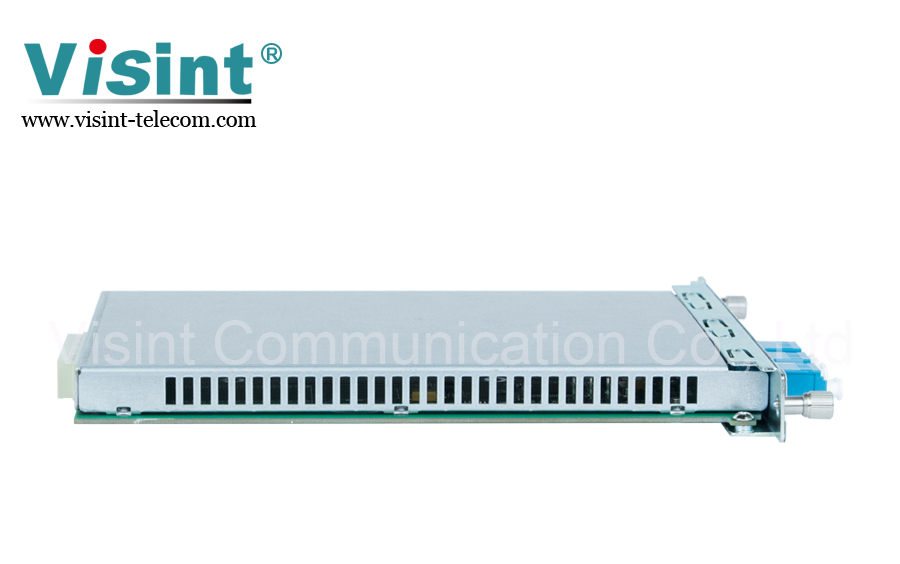

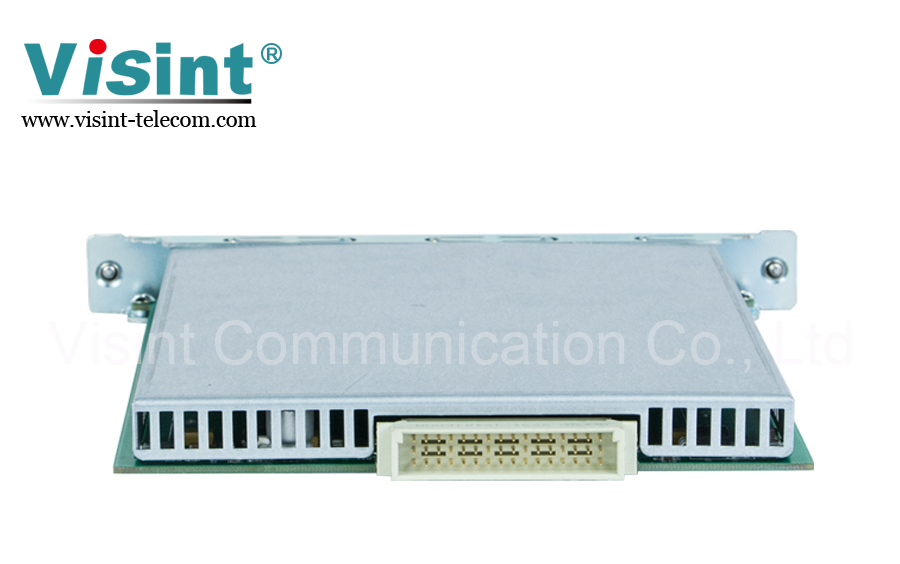

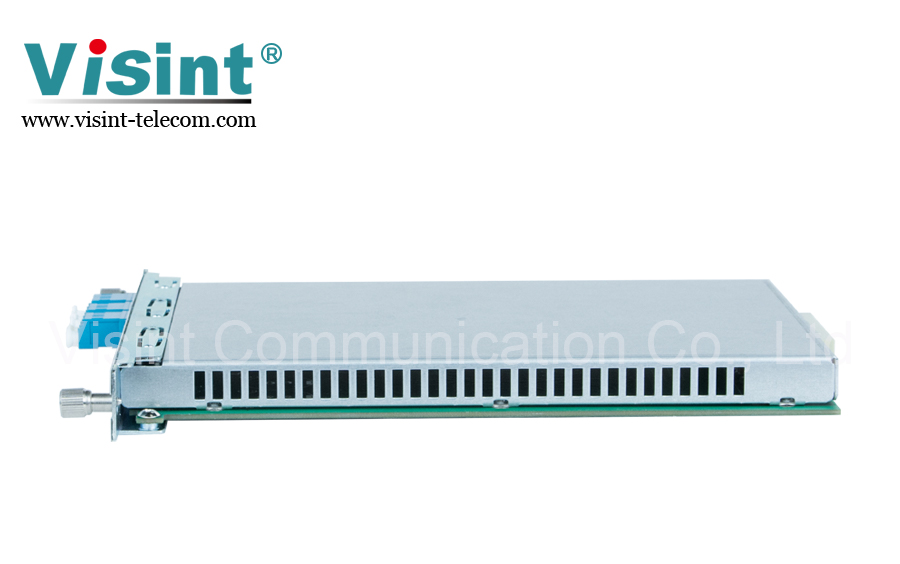

Optical Line Protection Card is a protection system, which is developed for optical fiber line backup. It adopts the advanced fiber line auto switching module component, it can auto identify the fiber line signal status of host and backup system, automatically fiber line switching, to protect system running normally when the main fiber faults occurred, improving the service quality of operators. It is widely introduced into various host and backup protection of trunk lines and different optical line switching networks. Its advantage is that the optical signal can be converted to use directly, small size, economic and safety.
Inquiry Now
Optical Line Protection Card is a protection system, which is developed for optical fiber line backup. It adopts the advanced fiber line auto switching module component, it can auto identify the fiber line signal status of host and backup system, automatically fiber line switching, to protect system running normally when the main fiber faults occurred, improving the service quality of operators. It is widely introduced into various host and backup protection of trunk lines and different optical line switching networks. Its advantage is that the optical signal can be converted to use directly, small size, economic and safety.
Supporting single-mode, multi-mode optical line protection.
Supporting dual-fiber bidirectional and single-fiber bidirectional protection.
Support 1+1 (double-sending, optional receiving), 1:1 (optional sending and receiving) protection.
Wide optical power monitoring range: -50dBm~+25dBm.
Short optical path protection switching time: ≤25ms.
Supporting SNMP-based unified network management platform, network management mode CLI, WEB, NetRiver (graphical interface).
Supporting local and remote control.
System Parameter | Technical Index | ||
Wavelength range | 1310±50nm & 1550±50nm. | ||
Monitoring optical power range | Tx | +25dBm~-50dBm. | |
RX | +10dBm~-50dBm. | ||
Insertion loss | 1+1 protection | Transmitting end | ≤ 4.0dB. |
Receiving end | ≤ 1.5dB. | ||
1:1 protection | ≤ 1.2dB. | ||
Accuracy of optical power measurement | ≤0.5dB (+20dBm~-50dBm). ≤1.0dB (-40dBm~-50dBm). | ||
Optical power resolution | ≤0.01dB. | ||
Wavelength dependent loss | ≤0.25dB. | ||
Polarization dependent loss | ≤0.1dB. | ||
Switching time | ≤25ms. | ||
Return loss | ≥45dB. | ||
Crosstalk | ≥55dB. | ||
Network management mode | CLI, NetRiver, WEB. | ||
Product dimension | 177 (W)*20(H)*225(D)(mm). | ||
Environmental requirements | Working temperature | -10℃ ~ 70℃. | |
Storage temperature | -40℃ ~ 80℃. | ||
Relative humidity | 5% ~ 95% no condensation. | ||
Safety and EMC | Compliance with FCC, UL, CE, TUV, CSA standards. | ||
Power consumption | <5W. | ||

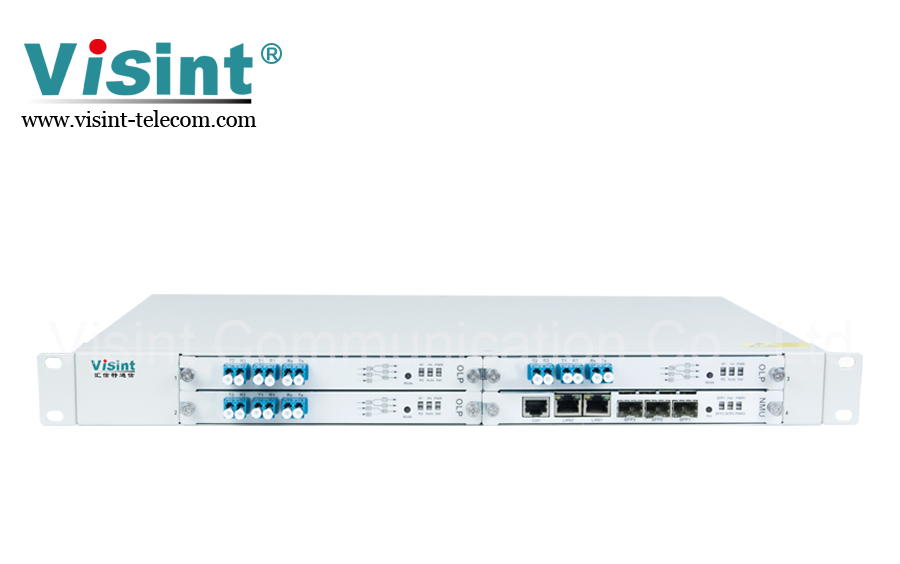

Visint® Vispace 1000 series optical line protection products effectively solve the problems of fiber transmission damage, line interruption, equipment power failure, and board failure, which seriously affect the stability of the transmission network in the existing network. It solves the practical problems of causing great pressure on customers, self-efficiency and line maintenance.
The OLP optical protection solution is applied to the protection of the optical line. It is necessary to add OLP optical protection equipment to the optical transmission equipment at both ends. At the same time, it is necessary to provide different routing lines for the main and standby, and can be used together with the dispersion compensation module and the amplification module. Supports dual-fiber bidirectional, single-fiber bidirectional and other transparent transmissions, with backup-fiber monitoring function, switching time in case of failure is less than 25ms, enabling fast switching of optical lines.
Figure 1: OLP Point to Point Protection Application Solution
The OBP optical bypass protection solution is applied to bypass single-site or single-device faults, maintain connectivity of the entire network, supports with heartbeat bypass function and with amplified bypass function, and the bypass time is less than 25ms when fault occurs. Quick bypass when there is a problem such as equipment failure or power failure.
Figure 2: Optical Bypass Protection Ring Network Solution
