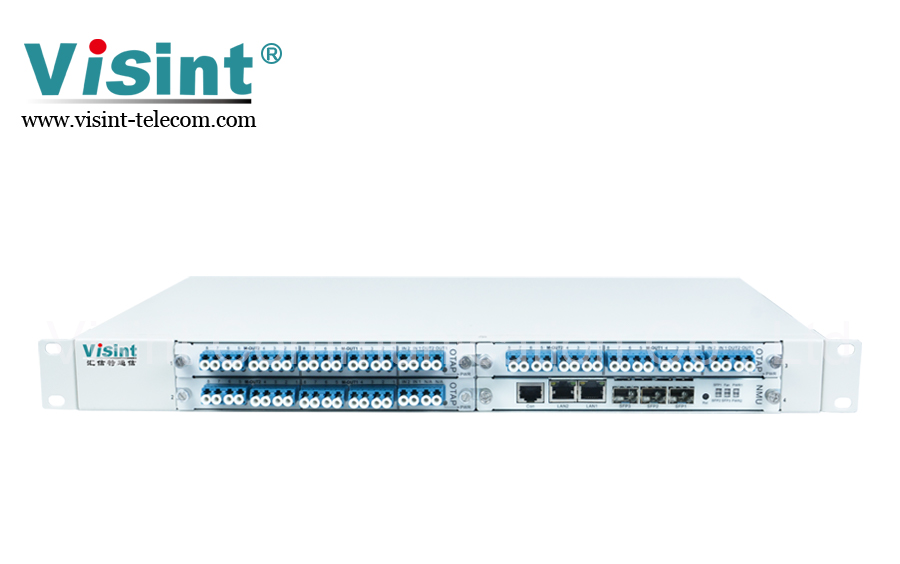

OTAP Spectroscopic Amplification
Product Overview

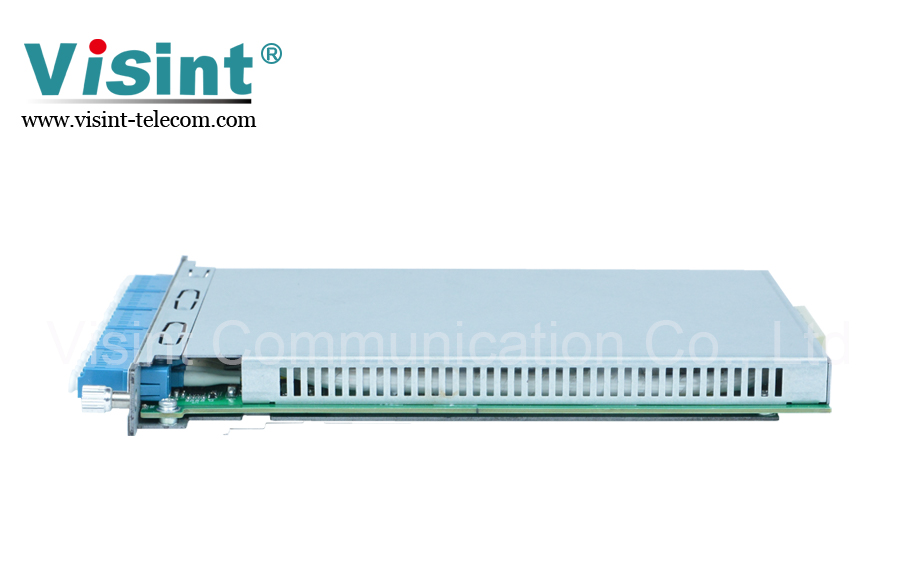

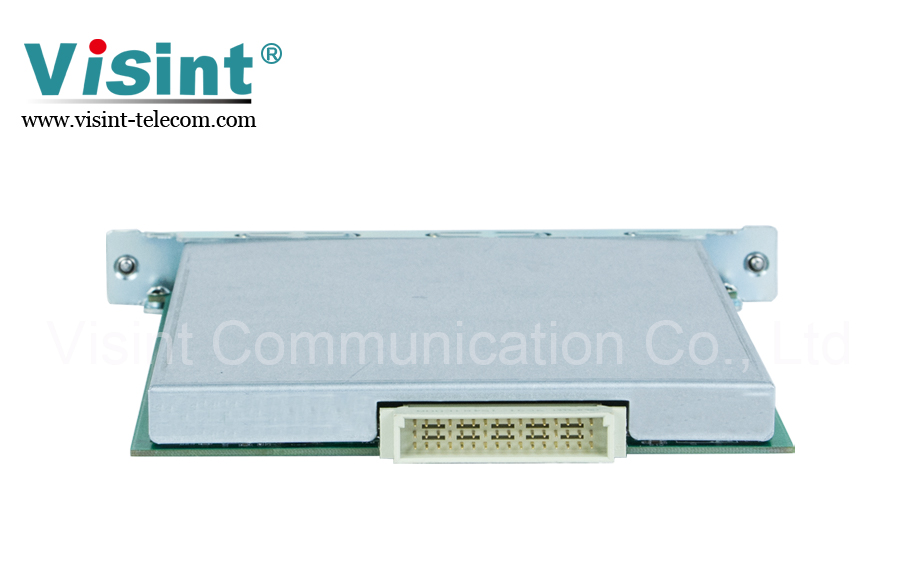

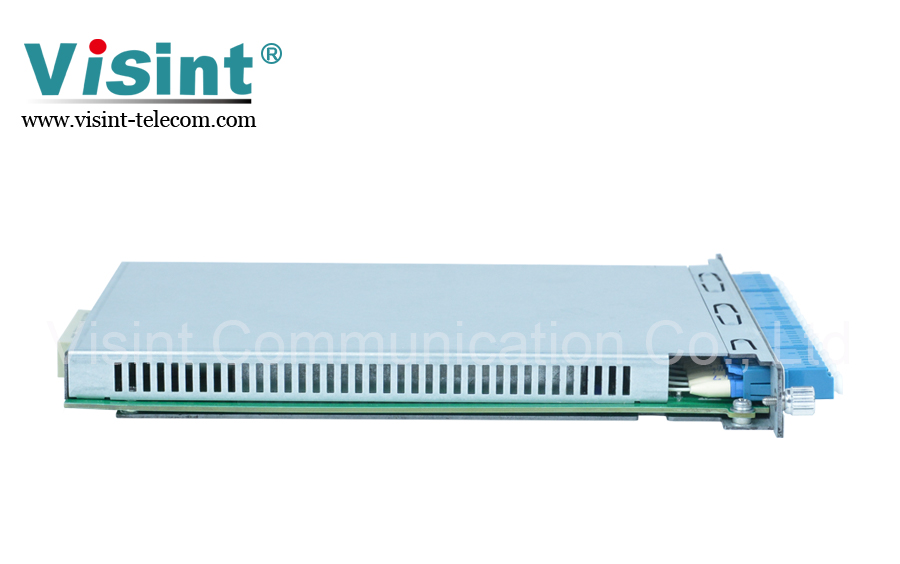

With the increasing demand for network traffic monitoring, many fiber optic links have to be split multiple times in order to meet the access requirements of multiple monitoring devices for the same fiber link. The OTAP spectroscopic amplification board introduced by Visint effectively solves a series of problems such as splitting ratio and optical signal attenuation caused by multiple splitting, and is widely used in the field of optical fiber network monitoring.
Inquiry Now
With the increasing demand for network traffic monitoring, many fiber optic links have to be split multiple times in order to meet the access requirements of multiple monitoring devices for the same fiber link. The OTAP spectroscopic amplification board introduced by Visint® effectively solves a series of problems such as splitting ratio and optical signal attenuation caused by multiple splitting, and is widely used in the field of optical fiber network monitoring.
Supporting a variety of optical fiber media.
Supporting multiple rate standards.
Supporting connection of up to 8 monitoring devices.
Supporting data clock regeneration and signal cleaning and shaping.
Supporting Failure Safety: Equipment failure or power loss does not affect the original link business.
Supporting a variety of bidirectional service access: PDH, SDH, Ethernet, and private network services.
Supporting SNMP-based unified network management platform, network management mode CLI, WEB, NetRiver (graphical interface), real-time monitoring of optical power of each port.
System Parameter | Technical Index | |
Single card access capability | Serial connection: 1 bidirectional link in series, 1~8 copies of traffic. SPAN mode: The output flow of SPAN port can be duplicated to 1~16 copies. | |
Access business types | Supports a variety of businesses such as Ethernet, SDH, PDH and private network. | |
Access business rate | Supports 100M~10G (optional). | |
Support business wavelength | Multimode, single mode (optional). | |
Network management mode | WEB, CLI, NetRiver. | |
Environmental requirements | Working temperature | -10℃ ~ 70℃. |
Storage temperature | -40℃ ~ 80℃. | |
Relative humidity | 5% ~ 95% no condensation. | |
Safety and EMC | Compliance with FCC, UL, CE, TUV, CSA standards. | |
Power consumption | <15W. | |
Visint® Vispace 1000 series products spectroscopic amplifier equipment is widely used in front-end spectroscopic amplifier equipment for scenarios such as network traffic monitoring and big data analysis. The device is connected in series on the service line to efficiently replicate the service data on the line and send it to the monitoring device; it is completely transparent to the service and does not affect the service transmission of the original line. Even if the device is powered off, the line can work normally and support multiple rates. Supports rates from 100Mbps to 100Gbps.

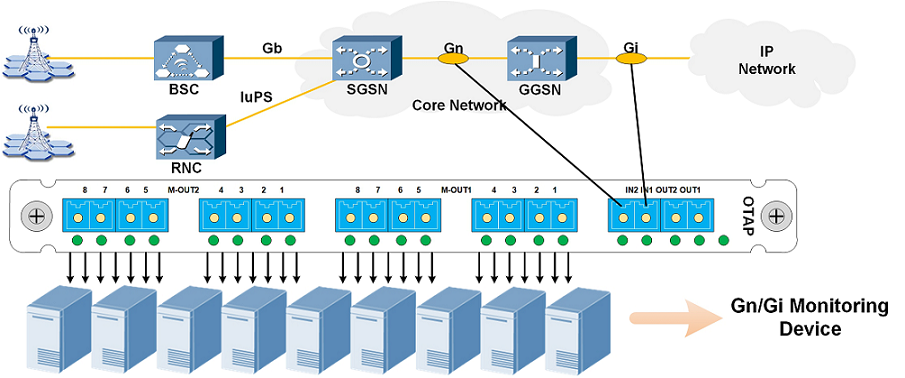

Figure: OTAP Spectroscopic Amplification Application
